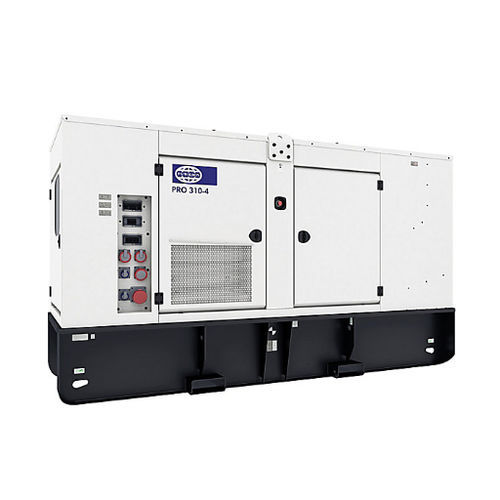

Diesel generator set PRO310-4
three-phase50 Hz60 Hz

Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz
Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz
Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz - image - 2
Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz - image - 3
Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz - image - 4
Diesel generator set - PRO310-4 - FG WILSON - three-phase / 50 Hz / 60 Hz - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Frequency
50 Hz, 60 Hz
Applications
industrial, rental
Emissions level
Stage V
Power in kVA

190 kVA, 310 kVA, 337.5 kVA
(258.33 hp, 421.48 hp, 458.87 hp)

Rated capacity

152 kW, 248 kW, 270 kW
(206.7 hp, 337.2 hp, 367.1 hp)

Voltage

Max.: 480 V

Min.: 220 V

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Fuel tank capacity

822 l
(217.1 gal)

Length

4,085 mm
(161 in)

Width

1,514 mm
(59.6 in)

Height

2,277 mm
(89.65 in)

Weight

4,103 kg, 4,784 kg
(9,045.57 lb, 10,546.91 lb)

Description

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions. Benefits Worldwide Power 50 / 60 Hz Switchable Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world. Compliance with EU Stage V Regulations Our EU Stage V PRO models now ensure you are compliant with the new emissions standards required for generators in a mobile application Efficient Operation from -4 C to 43 C Operation in all elements Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications Features At A Glance The PRO Range With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs. FG Wilson Diesel Engine The Perkins 400 Series, the 404J gives you a complete power solution that is EU Stage V compliant.
