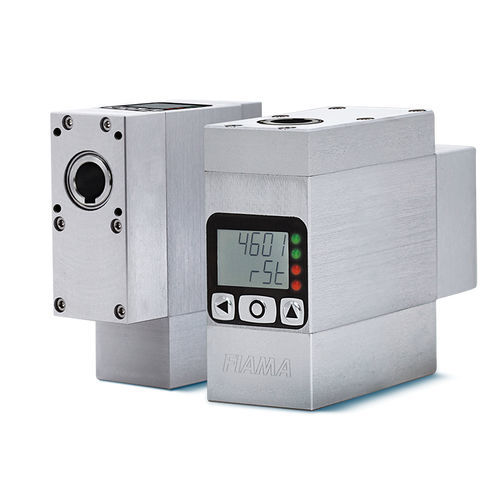

Positioning actuator SERVO series

electricrotarystainless steel

● Drive and position control integrated into a single device. ● Ultracompact design for simple installation; ø14mm output shaft with 5mm flat key. ● Intelligent connections for easy integration and configuration. ● Integrated and protected electronics. ● Mechanical backlash-free for accurate position control. ● Housing made of anodized aluminum (billet machined), output shaft made of AISI 303 stainless steel. ● Precision gears with surface treatment in reducer stage for very silent rotation with high efficiency and long service life. ● Position of axis maintained also when powered down. ● Communication protocols: Profinet, Ethernet/IP, Powerlink, EtherCAT. ● Ideal for automatic format changeover, assembly, and manipulation applications. ● Perfect repeatability of position adjustments; avoids the need for repeated manual adjustment in areas which are difficult to access or dangerous.
