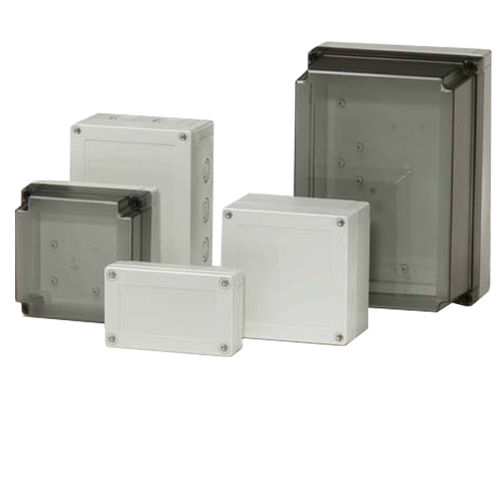

Wall-mount enclosure MNX PCM seriesrectangularpolycarbonatefor electronics
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- polycarbonate
- Application
- for electronics
- Protection level
- IP66, IP67
- Width
Max.: 180 mm
(7.1 in)Min.: 100 mm
(3.9 in)- Height
Max.: 255 mm
(10 in)Min.: 100 mm
(3.9 in)- Depth
Max.: 175 mm
(6.89 in)Min.: 35 mm
(1.38 in)
Description
MNX polycarbonate and ABS enclosures utilize world-class injection moulding technology. They are designed to house and protect all kinds of electrical and electronic components in the most demanding applications. The MNX includes more than 260 different variations.
Dimensions range from 100*100*35 mm to 255*180*175 mm.
PC: IP 66/IP 67; IK 08; NEMA 1, 4, 4X, 6, 12 and 13; UL 746C 5V; UL 508
ABS: IP 66/IP 67; IK 07; NEMA 1, 4, 4X, 6 (12 and 13); UL94HB
