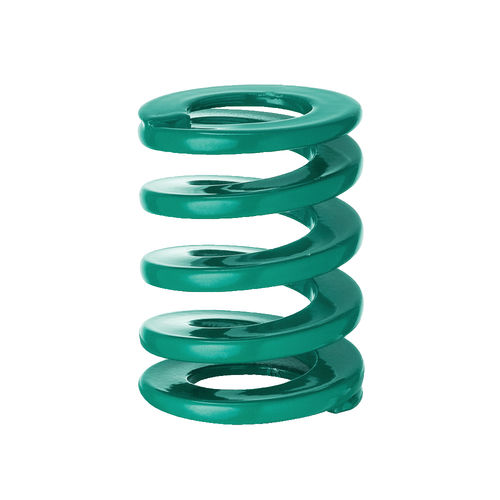

Compression spring 241.14.10.025
spiralsteelconstruction

compression spring
compression spring
compression spring
compression spring
compression spring
Add to favorites
Compare this product


Characteristics

Function
compression
Type
spiral
Material
steel
Applications
construction
Other characteristics
DIN ISO 10243
Extended length

Min.: 25 mm (1 in)

Max.: 305 mm (12 in)

Outer diameter

Min.: 10 mm (0.4 in)

Max.: 63 mm (2.5 in)

Description

HIGH PERFORMANCE COMPRESSION SPRING TO DIN ISO 10243 We manufacture and supply special spiral compression springs, steel springs and spring elements for punching and metal forming technologies as well as diaphragm springs and spring shape elements. The spring type used depends on the individual requirements. We have four load groups that can be used in either tool manufacture, engineering or in the construction of jigs and fixtures. The permissible value of the shear stress and the spring oscillating stress differential depends on the spring material used. FIBRO special spiral compression springs are manufactured from 50CrV4. The specially milled profile allows a high level of alternating and continuous loads and is ready for operations at working temperatures of up to 250°C.
