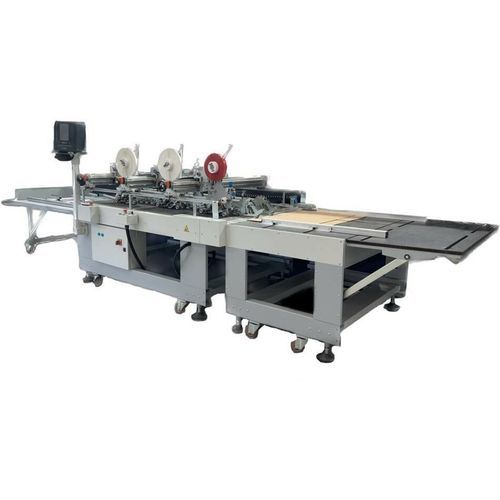

Adhesive tape taping machine Ortigia MF

manual setting

Product overview
Ortigia Manuale is a manually operated taping machine designed to apply double-sided tape, tear tape or silicone tape onto large corrugated cardboard sheets and formats. It is intended for companies with low to medium batch sizes or operations requiring fast changeovers and flexibility for irregular shapes and custom formats. The unit features a large feeding table that accepts sheets up to 120 x 200 cm and a manual tape head configurable for different tape types.

Applications

• Applying tape to corrugated cardboard with irregular shapes and sizes
• Sealing and reinforcing e-commerce envelopes and mailers
• Applying tape to boxes and custom-shaped cardboard formats
• Small-series production and manual finishing lines

Visual examples

• After tape application on corrugated sheets
• Tape applied on box flaps and edges
• Irregular-shaped cardboard formats with taped seams

Technical specifications

• Maximum open format: 120 x 200 cm
• Minimum open format: 40 x 50 cm
• Compatible tape types: double-sided tape, tear tape, silicone tape
• Target material: corrugated cardboard
• Cardboard thickness (flute):
  • E flute - 1.6 mm
  • B flute - 3.2 mm
  • C flute - 4.3 mm
  • BC flute - 7.2 mm
• Operation mode: manual, suitable for flexible, small-batch workflows
