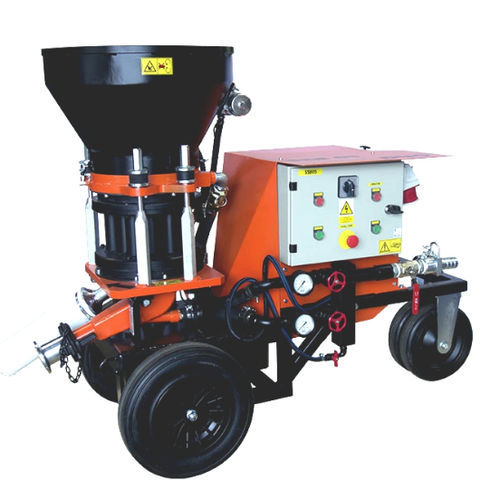

Concrete spraying machine SSB 05

Concrete spraying machine SSB 05 is designed for spraying concrete and refractory mixtures in a so-called dry, eventually wet method. This machine works on the rotor principle. The SSB 05 gunite machine provides a gunite capacity of 0.5 – 7.1 m3/h and is suitable for small and medium-size jobs. Concrete spraying machine SSB 05 is driven either by a two-speed electromotor with two output levels (DUO version), or by one-speed electromotor with fluent output regulation (COM-V, COM-F versions), eventually by an air turbine with fluent output regulation (COM-A). Its standard equipment includes a central lubrication system that ensures the automatic greasing of all abrasion-prone surfaces. The greasing process is either manual (lever), or automatic. Depending on the nature of concrete used, a small, medium, or large dosing drum is employed. The small drum is recommended for the spraying of fine, dry and heavy mixtures (e.g. refractory concrete, fine prefabricated mixtures). For spraying in the so-called wet method, dosing drum MAXI (7,9 l) shall be used. ADVANTAGES usable for both wet and dry concrete spraying technology easy operation and maintenance of the machine output control (COM-F, COM-V models) belt drive to prevent damage to the drive in the event of a sudden machine stop long service life of consumption parts (sealing and wearing plates) ensured by the application of central lubrication system robust structure enables application in demanding conditions Working principle Gunite machine SSB 05 works on the principle of pneumatic transport of concrete mixture.
