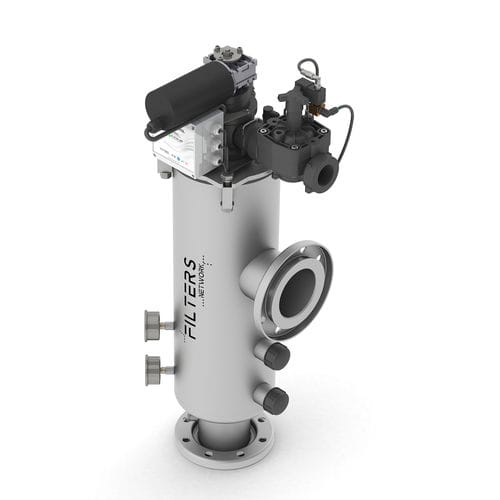

Water filter Ecoklin - EK2710
for rainwaterstrainerbasket

Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 2
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 3
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 4
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 5
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 6
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 7
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 8
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 9
Water filter - Ecoklin - EK2710 - Filters Network - for rainwater / strainer / basket - image - 10
Add to favorites
Compare this product

Characteristics

Designed for
water, for rainwater
Filtration element
strainer, basket, wire mesh, microfiber
Filtration method
pressure, vacuum
Applications
fine filtration, for chemical applications, industrial, process, laboratory, for low-pressure applications, for the food industry, suction, heavy-duty, for high-pressure applications, separation, for hydraulic applications, for purifying, for heating systems, irrigation, for HVAC, for the pharmaceutical industry, for water treatment, for pipelines, for cooling systems, for industrial washing, with swing-arm, for HVAC installations, safety, for steel plant applications, coarse pre-filtration, intake, for vacuum pumps, for pump, for cutting machines, heavy-duty, discharge, for storage tanks, automotive
Material
stainless steel, varnished steel, zinc-plated
Mounting
flange
Cleaning
continuous, backwash, self-cleaning, washable, with radial scraper cleaning, with pneumatic cleaning
Fluid specification
process water, for seawater
Other characteristics
high-performance, compact, in-line, tubular, automatic, cylindrical, high-efficiency, high-efficiency, medium-pressure, low pressure, anti-corrosion, continuous-flow, modular, high-flow, vertical, self-extinguishing, horizontal, with differential pressure measurement, metal mesh, high-intensity, duplex
Operating pressure

3 bar
(43.511 psi)

Max.: 8 bar
(116.03 psi)

Min.: 2 bar
(29.008 psi)

Filtration size

Max.: 2,000 µm

Min.: 20 µm

Flow

Max.: 110 m³/h
(3,884.613 ft³/h)

Min.: 30 m³/h
(1,059.44 ft³/h)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 5 °C
(41 °F)

Filtration surface

Max.: 3,500 cm²
(542.5 in²)

Min.: 1,800 cm²
(279 in²)

Description

Imagine a filtration system that combines efficiency, reliability, and innovation, designed to meet the needs of long-lasting installations. This is Ecoklin, our superior quality and reliable automatic self-cleaning filter. Born from the vision of offering an uncompromising water filtration solution, Ecoklin is the result of years of research and development conducted by a team of industry experts. Our mission is clear: “To create a self-cleaning filter that not only guarantees excellent performance but is also easy to maintain and capable of adapting to different operating conditions.” Thanks to its versatility, Ecoklin is suitable for a wide range of installations, with a filtration range from 20 to 2000 microns. The heart of Ecoklin is the advanced “suction scanner” technology, developed through years of research and experience. This innovative system allows for the rapid cleaning of the filter element without interrupting the water flow. Additionally, the differential pressure (Δp) control system, combined with the adaptive radial swing suction-scanner system, enables significant water recovery, removing suspended solids much more quickly and efficiently. The filter element, optimized over the years, makes it a durable and long-lasting device, capable of operating even in particularly harsh conditions. Used in industrial plants, irrigation systems, aqueducts, and many other applications, Ecoklin has proven to be a reliable filter that, when applied correctly, frees installers from concerns about system shutdowns, lengthy, and laborious maintenance.
