V mixer FTIMV series

continuoussolidpowder

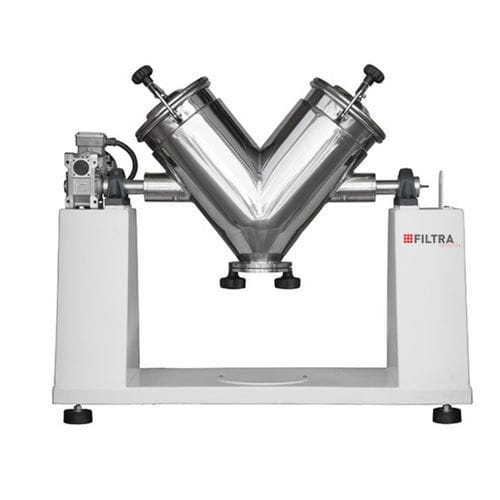

The ATENEA Industrial V-Mixer is used to achieve perfect homogenization of solid with solid (in any proportion) and solid with liquid (10% maximum) products in powder or granulated form. It has a V-shaped body made of AISI-316 stainless steel, with two loading inlets and one outlet, with a butterfly valve to facilitate the unloading of the mixture. Due to the V-shape axial currents are produced when the body is turned through 360º, and these currents separate and unite the product to be mixed. This, along with the radial mixing action, produces an extremely homogeneous result (in the proportion of 1 part in 10.000). It is possible to add an intensifying bar within the interior which breaks down lumps and reduces the mixing time. >The surface finish is mirror-polished with various grades of polish as required. SPECIFICATIONS It is used to achieve perfect homogenization of solid-to-solid products (in any proportion) and solid-to-liquid products (with a maximum of 10%), in powder or granulated form. It features a V-shaped body made of AISI-316 stainless steel, with two loading openings and one discharge outlet, equipped with a slide valve to facilitate the unloading of the mixture. The V-shape, combined with a 360° rotation of the body, generates internal axial currents that separate and bring together the product to be mixed. This, combined with the radial mixing action, results in a highly homogeneous blend. TECHNICAL DATA: > Option to add an intensifier bar inside, which breaks up lumps and reduces mixing time. > Mirror-polished finish with different polishing grades available upon request.
