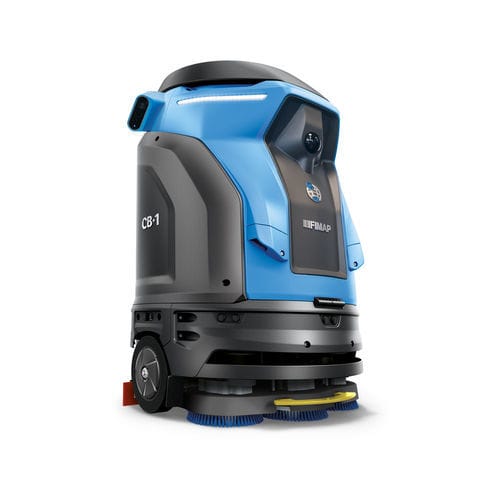

Autonomous scrubber-dryer CB-1

battery-poweredenergy-savingwater-saving

Overview
CB-1 is Fimap’s autonomous scrubber dryer designed to improve productivity of cleaning operations. It is a collaborative robot that works alongside operators, handling simple and repetitive cleaning tasks with minimal supervision so personnel can focus on more complex work. Its ease of programming and use (no-mapping technology) enables operators to program the machine directly without external technicians.

Key benefits

• Autonomous collaborative operation to boost productivity and ensure service continuity even with personnel shortages
• Reduces time spent on routine cleaning of large, high-traffic areas (warehouses, airports, shopping centres, supermarkets, schools)
• No mapping required: simple to program directly by the operator
• Minimum supervision required—operators can concentrate on more demanding tasks

Navigation & safety

• SENSOR DATA FUSION technology for high safety standards in navigation and reliable obstacle detection
• Certified safety: complies with the latest international standards for autonomous cleaning machines
• 3 navigation modes: two autonomous (Learn&Play and Perimeter) plus one manual mode
• Delay start function to schedule a cleaning operation to begin after a specified time

Mission & reporting

• Up to 999 different missions can be stored (by area type, route and cleaning type)
• With FFM (Fleet Management), to track and report cleaning activity and record CO2 emissions; provides detailed report for each mission

Power & energy

• Available with lithium (Li-ion) batteries for efficient autonomy and fast recharging
• Energy-saving technologies available (ECO Mode, FES)

Technologies

• ECO Mode: saves water and detergent and reduces noise levels
• FFM: fleet management system (reporting, activity tracking, emissions control)
• FES: energy saving system (up to 35% energy saving)
• Li-ion technology: fast recharging to keep the machine available

Highlights

• No mapping required for setup and operation
• Designed to be autonomous with sensor top view and multiple obstacle detection systems
• Devices and features to improve safety in public areas
• Fast, simple maintenance for reduced downtime and costs

Technical specifications

• Productivity theoretical (up to sqm/h): 1710
• Working width: 570 mm
• Pressure on the brush: up to 15 kg
• Solution tank: 40 l
• Recovery tank: 40 l
• Supply/traction: 24 V / autonomous
• Battery run time (up to): 4 h (Li-ion)
• Machine dimensions (L x h x w): 735 x 1100 x 739 mm
• Squeegee width: 700 mm
• GVW (Gross Vehicle Weight): 240 kg
• Sound pressure level (ISO 11201 – LpA - Eco mode): 65 dB(A)
