Single-phase electrical energy meter 7M2482300001 series

RS-485residentialprogrammable

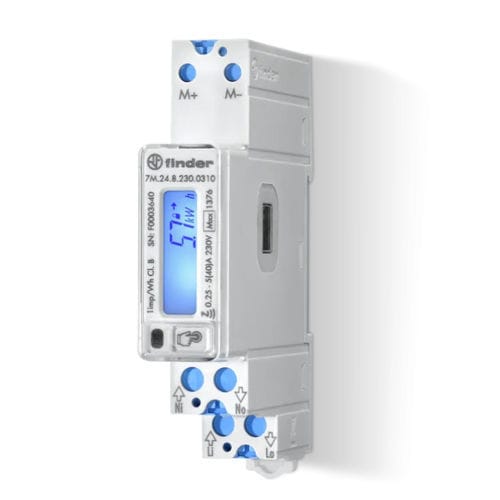

The single-phase bi-directional energy meters with LCD display, Types 7M.24.8.230.0001, 7M.24.8.230.0010, 7M.24.8.230.0210 and 7M.24.8.230.0310 are the ideal products for monitoring domestic/industrial energy consumption, including applications in offices, photovoltaic systems and energy metering within campsites. The Type 7M.24 energy meters are programmable via smartphone thanks to NFC technology, which allows you to read the measured energy even in the absence of a network. They are also distinguished by the touch-sensitive navigation and programming key and by the power/control terminals with integral sealable tamperproof terminal shield. Other features: 4 MID certified counters for imported and exported active and reactive energy 8 resettable counters for active, reactive, absolute apparent, imported and exported energy Extensive real-time measurement capability: V, I, Pf, f, voltage and current THD and operating run-time for preventive maintenance activities Communication protocols M-bus and Modbus RS485
