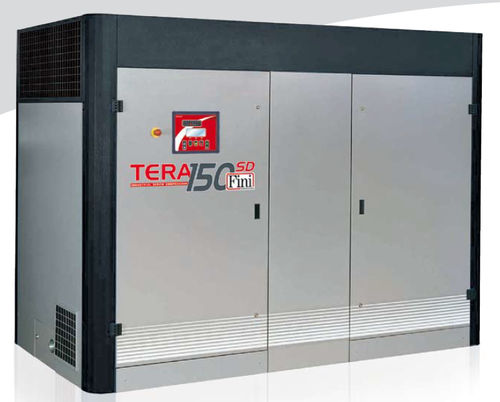

Screw compressor TERA SD seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- lubricated
- Application domain
- industrial
- Other characteristics
- direct-drive
- Pressure
13 bar
(188.55 psi)- Flow
42,100 l/min
(11,121.64 us gal/min)- Power
Max.: 250 kW
(339.91 hp)Min.: 75 kW
(101.97 hp)
Description
COMPACT AND EFFICIENT
Rotar TERA SD compressor, single stage
lubrified, ranging from 75 to 250 kW,
is the optimal response to the modern
industry compressed air demands.
Compact, with direct drive and
operational pressures 7.5, 10 and 13
bar. The complete TERA SD Series range
is available with continuous flow control
by means of an inverter drive
(STC version).
The machine is fitted with electronic
controller, aftercooler, condesate
separator (external for models 280
and 340) with time based drain.
TERA SD in the standard configuration,
is air cooled and it is designed for
continuous operation 24/7.
Optional versions have available water
cooling and heat recovery “oil to water”
heat exchanger.
