Optical color sensor MEGA FINN™ MODULE

customUSBplug-and-play

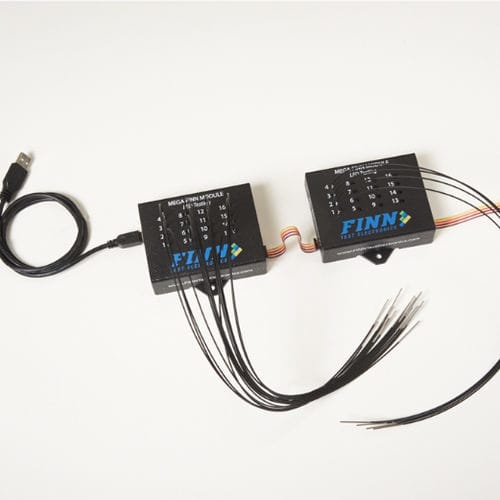

MEGA FINN™ MODULE Test up to 254 LEDs with a single USB cable or RS232 cable ICT and Functional Test Stations - Plug and Play USB or RS232 The Mega FINN Module combines all of the accuracy and speed found in the Mega FINN with an easy to use, compact module for testing larger quantities of LEDs. Benefits of the MEGA FINN™ Module Universal: ICT or Functional No software set-up: Plug and play , USB and RS232 - USB cord provided Daisy Chain: Both ICT and Functional up to 254 LEDs Multiple Outputs: Voltage and Frequency No cutting fibers/polishing: 18” or 24” fibers with custom heads assembled in one piece. Fibers come with the module. ICT wiring: 4 wires –power, ground, transmit, and 1 output for all 16 channels Power: Over-voltage Protection and input range 5-16 Volts @ ~100mA MEGA FINN technology
