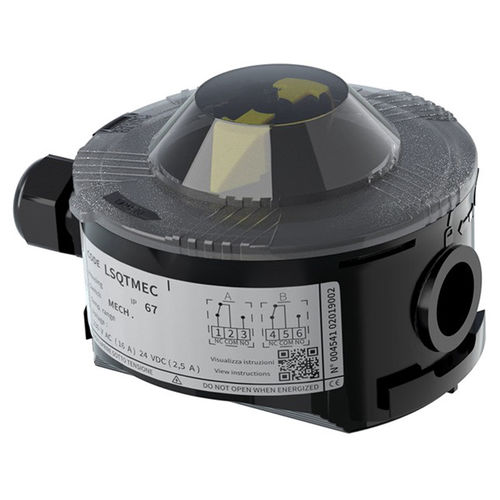

Quarter-turn actuator limit switch box LSQT series

compact

New technopolymer limit switch box for quarter turn valves: easy installation with great versatility of use, even in corrosive environments. • Compact design with threaded cover • Plastic installation clips and brackets • Protection class IP67 or higher guaranteed by safety pin insert • Configurable optical indicator with high visibility yellow arrows • Label with QR code for digital support assistance to installation • Versatility of installation on all models of quarter turn actuators and FIP manual valves MAIN FEATURES: LSQTMEC - IP67 box containing two electro-mechanical microswitches and configurable optical indicator ◾Switch type SPDT, OMRON D3V-16-1C5 ◾Contacts rate 0.3A (250 VDC) - 0.6A (125 VDC) - 10A (250 VAC) ◾Protection class IP67 / DIN EN 60529 ◾Temperature range -10°/+50°C ◾Cable inlet 1 M20x1.5 / 6-12mm cable gland LSQTPNP - IP68 box containing two inductive PNP (3 wire) microswitches with configurable optical indicator ◾Switch type Inductive PNP 3-wire, P+F NBN4-V3-E2 ◾Voltage 0-30 V DC ◾Frequency 0-500 Hz ◾Operating current 0-100mA ◾No-load current <=15mA ◾Protection class IP68 / DIN EN 60529 ◾Temperature range -10°/+50°C ◾Cable inlet 1 M20x1.5 / 6-12mm cable gland
