Robotic palletizer

palletindustrialsheet

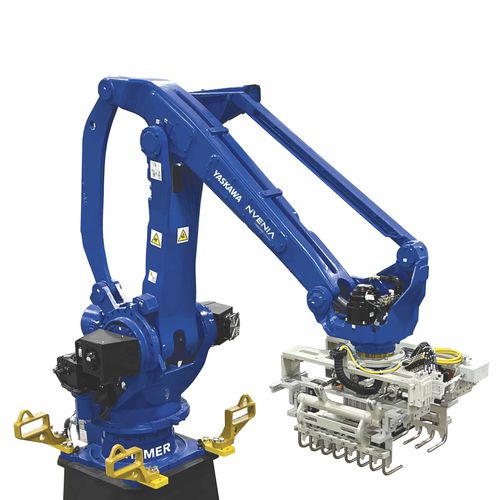

The Hamer Brand Basic – Entry Level – Robotic Palletizer features a current generation 5 axis robotic arm. The Basic Model makes semi-automatic or fully automatic palletizing even more affordable for lower production demand applications. These systems are available in semi-automatic or fully automatic configurations. A semi-automatic configuration describes an operation where bags are fed to the palletizing robot and placed on a stacking station with floor positioned empty pallets. Full pallets are then picked up by fork trucks or pallet jacks for wrapping prior to shipment. A fully automatic configuration features a pallet dispenser, slip sheet dispenser, and automatic full pallet conveyors. This system feeds empty pallets to stacking stations where a robotic arm stacks bags onto the pallet. Once a pallet is completed, it is transported via automatic powered conveyors to an integrated pallet wrapping machine or hooding equipment. Features Standard: A wide variety of configurations and system designs are available. An RPM Palletizer System typically includes: • Semi-automatic configuration with 1 or 2 pallet stack • Fully automatic configuration with power conveyors • MPL 100 II, 5 axis, 100KG robotic arm • DX200 Robot Controller • Robot mounting base plate/riser • 28” robot riser • EasyPic operator software pallet configuration • MaxPic pallet configuration • Industrial design End Of Arm Tooling • ANSI/RIA safety protocols Options A wide variety of configurations and system designs are available, including a Palletizer Preventative Maintenance service program. • EasyPic™ Operator HMI • Servo chiller for high temperature installations
