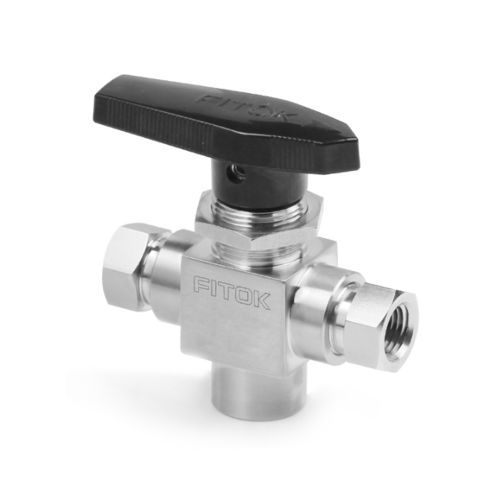

Ball valve BFSS-FNS4-P-3DL-LTmanualfemalePEEK
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- female
- Material
- PEEK, stainless steel
- Number of channels
- 3-way
- Associated function
- filling
- DN
0.25 in
- Pressure
414 bar
(6,004.6 psi)- Temperature
Max.: 93 °C
(199 °F)Min.: -40 °C
(-40 °F)
Description
316 SS, BF Series Ball Valve, CNG fast-fill, PEEK Seats, 1/4 Female NPT, 6000psig(414bar), -40°F to 200°F(-40°C to 93°C), 0.75 Cv, 3-way, 90° actuation, Low-temperature Service
Body Material316 Stainless Steel
Port 1 TypeFemale NPT
Port 1 Size1/4 in.
Flow Pattern3-Way
Feature"Fast Fill" CNG Filling Station Application
