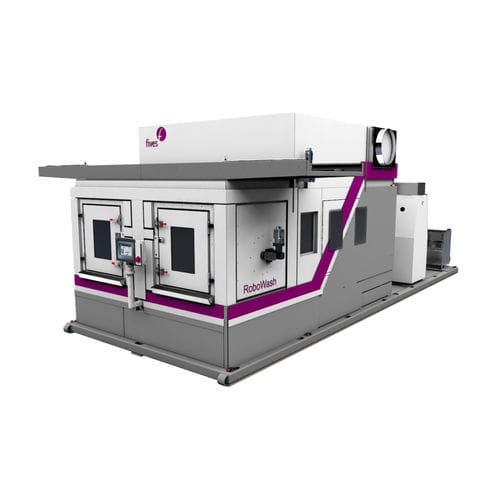

Robotic washing machine ROBOWASH™

dryindustrialprocess

Fives’ RoboWash™ is a robotic industrial washer featuring a fully automated parts manipulation process for high-precision prismatic cleaning applications. Best suited to clean single parts, RoboWash™ supports high-volume production during the final assembly and in-process stages. RoboWash™ is built for high-precision cleaning of complex prismatic parts such as engine blocks, cylinder heads and transmission cases. It incorporates multiple functions into one machine: pre-wash, high-pressure wash, pressurized dry and low-pressure dry processes. High-pressure deburring is also included as a standard feature. RoboWash™ is fitted with both fixed and spinning nozzles to deep clean cross holes, deep holes, tap holes, bore holes, back tapers and cavities. An aqueous-based targeted spray clears out contamination from burrs, chips, oil and swarf. Separate chambers accommodate various stages of the industrial cleaning process, and movements between chambers can be made via robot. PATENTED REMOVABLE 6-AXIS ROBOT OFFERS ULTIMATE PRECISION CLEANING FLEXIBILITY RoboWash™’s standout feature is its patented removable robot, which simplifies part manipulation for maximum effectiveness. It is comprised of 6 axes that enable nearly limitless part manipulation, exposing all external surfaces to the high-precision cleaning and drying processes. This machine offers flexible pressure levels up to 8,000 PSI (550 bar).
