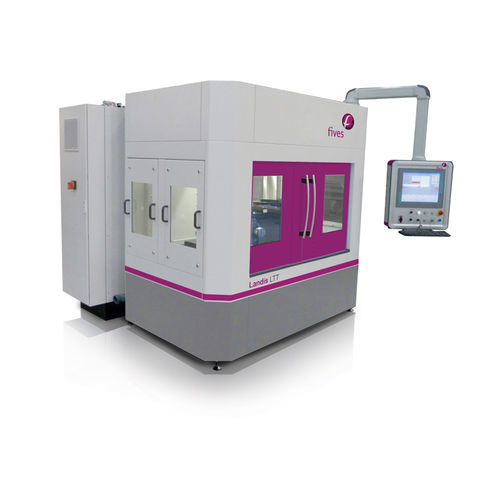

Cylindrical grinding machine Landis LTT

CNChydrostatichigh-precision

HIGH PERFORMANCE GRINDING SOLUTION WITH ONE-OF-A-KIND CAPABILITIES The Landis LTT is a flexible solution for grinding ID/ODs, faces, tapers, including concentric and eccentric diameters and contours, to sub-micron tolerances in a single clamping. The two rotary turrets are equipped with integrated servomotors and X-axis hydrostatic guideways with linear in-feeds to enable simultaneous contouring of workpieces. All motors are backlash free for all motions, using ultra-stiff hydrostatic spindle bearings. A FULLY-INTEGRATED PACKAGE High performance control is achieved with the Landis 6400 open architecture control software, in a fully-integrated package. The software ensures maximum delivery with advanced monitoring capabilities and comprehensive sensor integration, as well as easy programming. Additional options include a variety of in-process gauging and touch probes, as well as auto wheel balancers. Plus, it’s all backed up by 32 kW of available power to guarantee constant wheel speeds of up to 120 m/sec. MACHINE HIGHLIGHTS The Landis LTT can cater to components of up 400mm and 150kg with a maximum swing diameter of 180mm. Additional features include: A variety of headstock and footstock options Arobotec workrest Filtration systems Automatic loading / unloading
