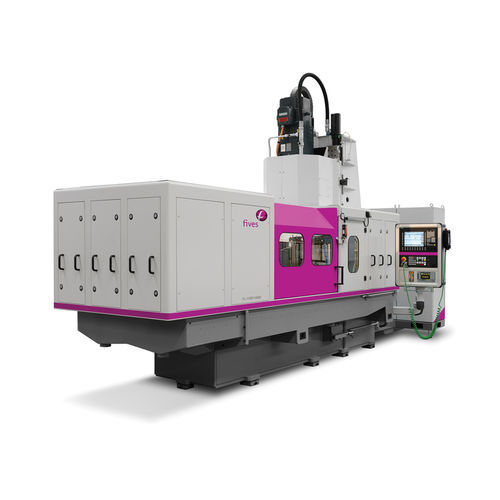

Vertical disc grinding machine XL-VSD series

for gearswith rotary tableCNC

Our large vertical single disc grinding machines are engineered to optimize efficiency. Advanced features reduce cycle time and improve flexibility - while still guaranteeing remarkable smoothness and flatness. LARGE VERTICAL SINGLE DISC GRINDERS - A SMOOTH FINISH FOR LARGE PARTS Our large vertical disc grinding machines feature a rotary table (max diam. 3,200 mm) that is specifically designed to process sizable workpieces. With exceptional stiffness throughout, our large vertical single disc grinders are able to offer tight squareness, with guaranteed accuracy and repeatability. EXCEPTIONAL PARALLELISM & FLATNESS The in-process gauging system controls the feed position of the grinding wheel, resulting in better stability of part size and increased production rates. In addition, many types of components can be ground with a high stock removal rate and smooth finish using the plunge or rotary table method. These components include: Large bearings Slew bearing rings Plates Hydraulic motor flanges Transmission crown gears Pump covers And many other components SINGLE DISC - DOUBLE LOAD Engineered to ensure optimized efficiency, these flexible machines can grind one or multiple workpieces at the same time, increasing productivity. Further, the machines have the ability to complete rough and finish grinding in one clamping. Additional machine features include: Rotary tables available in different sizes Adjustable magnetic force with magnetic rotary table Segmented grinding wheel Robot, gantry or manual loading options Grinding wheel and worktable carriage are servo-controlled
