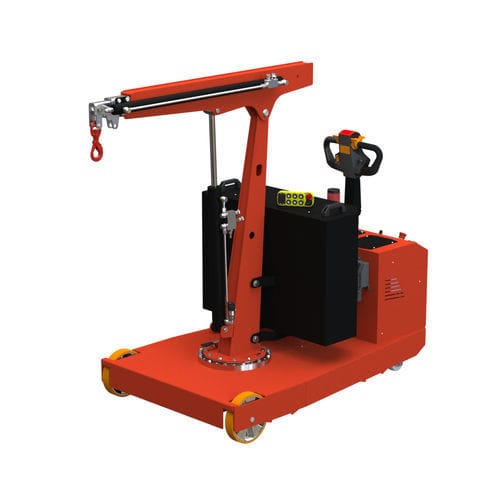

Mobile crane FLEX G750DBR

telescopicboomshipbuilding

The FLEX G750DBR lifting equipment is a battery powered counterbalanced swivel crane that allows lifting loads of up to 750 kg. Thanks to the double telescopic extension it guarantees a free reach of 2.4 metres. The rotation of the slewing ring, which can be locked every 30°, is done manually and is facilitated by the presence of bearings and two ergonomic handles located on the upper part of the ballast. Equipped with 2 fixed wheels and a wheel motor connected directly to the tiller for maximum manoeuvrability in tight spaces. Standard features: maintenance-free sealed AGM batteries, external battery charger, LED stack tower lights indicating correct crane operation and overload warning, emergency stop. The Flex G750DBR counterbalanced mobile crane also has a multifunctional display showing charge level, battery voltage and hours of operation. Lift, lower, extend and retract of the boom are electric controlled. All movements are adjustable by the operator through a wireless remote control. Speed ​​and proportionality are managed via the potentiometer on the remote control. It is a universal mobile crane with unlimited application possibilities. With the FLEX G750DBR mini crane, thanks to its 270° rotation and telescopic boom, components such as moulds, spare parts, semi-finished products and other loads can be placed on CNC machining centers, racks, assembly benches and any hard-to-access location.
