PA tube clamp RQDR-KB

Product Details
Tubing clamp systems for light, medium and heavy duty applications

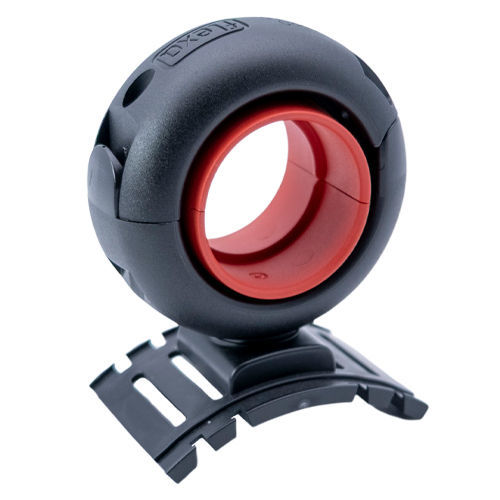

Rotatable tubing holder with velcro fastening, rotatable velcro strap holder incl. 50 cm velcro strap / maximum mobility with red MOVE insert, specially designed for cobots and small industrial robots operating at slow and medium speeds in the field of robotics.

Material and Temperature

• Material: PA plastics (PA6)
• Temperature: -40°C ... +120°C

Certifications / Standards

• CE
• EN 45545 HL3
• ASTM E162 E662 SMP800-C
• RoHS
• REACH
• JRMA

Properties

• Rational tubing assembly for corrugated tubings with coarse and fine profile
• Free of silicone, cadmium and halogen
• Self-extinguishing
• Fit for high mechanical stress
• Impact-resistant
• REACH and RoHS compliant

Variants Table
FLEXA No. | Colour | OD [mm] | A [mm] | B [mm] | C [mm] | Weight [kg|100] | PU [pcs.]
15040042200 | Black | 42.5 | 66.0 | 85.0 | 45.0 | 4.50 | 1
15040142200 | Black | with MOVE OD 34.5 | 66.0 | 85.0 | 45.0 | 5.60 | 1
15040242200 | Black | with MOVE OD 28.5 | 66.0 | 85.0 | 45.0 | 5.84 | 1
15040342200 | Black | with MOVE OD 21.2 | 66.0 | 85.0 | 45.0 | 6.20 | 1
15040442200 | Black | with RQMR OD 28.5 | 66.0 | 85.0 | 45.0 | 5.60 | 1
15040542200 | Black | with RQMR OD 34.5 | 66.0 | 85.0 | 45.0 | 6.20 | 1
15040642200 | Black | with RQMR OD 21.2 | 66.0 | 85.0 | 45.0 | 6.30 | 1

Technical Characteristics / Specifications

• Rotatable tubing holder with velcro fastening
• Velcro strap holder includes 50 cm velcro strap
• Maximum mobility with red MOVE insert
• Specially designed for cobots and small industrial robots (slow/medium speeds)
• Material: PA plastics (PA6)
• Temperature range: -40°C to +120°C
• Free of silicone, cadmium, halogen
• Self-extinguishing
• High mechanical stress resistance
• Impact-resistant
• REACH and RoHS compliant
