Current monitoring system Rip Prevent+

energy analysisflowtemperature

Overview

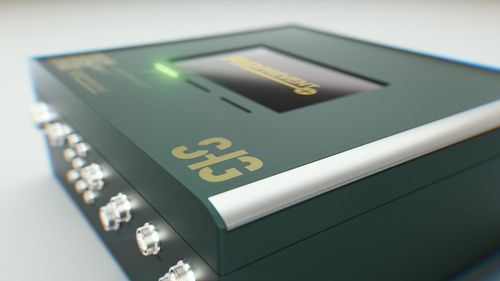

Rip Prevent+ is an AI-driven conveyor belt monitoring platform from SHG Conveyor Control GmbH designed to detect critical belt rips, anomalies and motor faults, enable predictive maintenance and support higher operational availability.

INPUT PARAMETERS

• Belt information
• Idler information
• Belt speed
• Electrical parameters
• Massflow
• …

APPLICATION FIELD

• Designed for mining and industrial conveyor belt installations
• Detects anomalies, slippage events, grain faults and motor faults
• Compatible with special belt types (e.g. corrugated edge belts, SICON belts)

BENEFITS

• Suitable for all conveyor belts
• No sensor elements embedded in the conveyor belt required
• No on-belt wear risk
• Works with all cover ratios
• Low initial investment
• Position-independent rip monitoring
• Enables predictive maintenance strategies
• Lifetime hardware and software warranty
• …

AVAILABLE FUNCTIONS / MODULES

• Rip Detection
• Rip Prevention
• Anomaly Detection
• Massflow Calculation
• Electrical Network Analysis
• Energy Efficiency
• Drive Monitoring
• Gearbox Monitoring
• Bearing Monitoring
• AccuTrac
• Idler Monitoring
• Scraper Monitoring

Technical characteristics / specifications

• Belt width: 600 mm – 6000 mm
• Belt speed: up to 12 m/s
• Belt types: EP, ST and special belts
• Temperature range: -20°C to 55°C
• Humidity: 20% to 90% RH (non-condensing)
• System outputs: 3x relays (max. 250 V, 6 A); 1x Ethernet TCP/IP
• System inputs: 88 – 264 VAC; 125 – 270 VDC
• IP class: IP67
• Conformity: CE, TÜV NRTL, RoHS (ATEX on request)
• Dimensions: 300 mm x 330 mm x 120 mm
