Chain conveyor XS

horizontalverticaltransport

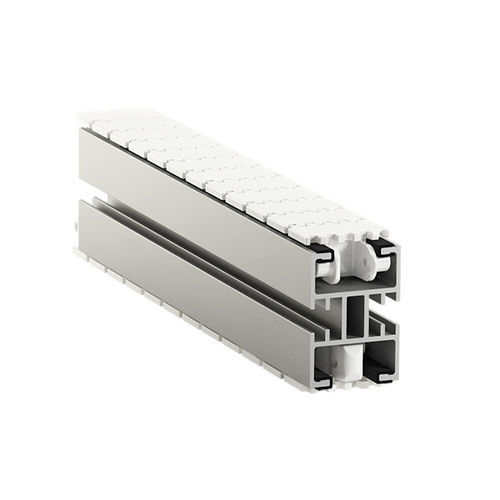

FlexLink's XS conveyor system is very compact and neat designed. Its chain permits transport of very small items. The multi-flexing XS plastic chain conveyor system with an aluminum beam permits horizontal and vertical distribution of products. The conveying system's tight vertical bends save floor space by enabling multilevel transportation and making access easy for operators. The standard conveyor chain width is 45 mm, and the conveyed products vary from a few grams up to 2 kg, in many shapes. The collection of standard components guarantees the design of a customized conveyor solution with a fast delivery time. The conveyor can be configured with a suitable chain according to the production requirements, e.g., temperature, strength, etc. Packaging Type Asymmetric, rectangular, round, symmetric Product state Clean, dirty, dry, wet Product range Max product width (mm)80 Min product width (mm)10 Production environment Environment type Dry, wet Operating temperature (°C)-20 to +60
