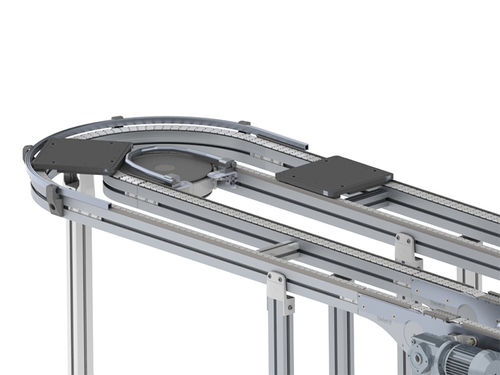

Chain conveyor XT
for the automotive industrypartshorizontal

chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
chain conveyor
Add to favorites
Compare this product

Characteristics

Technology
chain
Sector
for the automotive industry
Product transported
parts
Other characteristics
horizontal, two-track
Maximum load

Max.: 200 kg (440.925 lb)

Min.: 8 kg (17.637 lb)

Speed

20,000 mm/min (13.12 in/s)

Description

Twin track pallet systems handle individual products on product carriers (pallets). The pallet conveyors are suitable for assembly and test processes in particular. Twin track pallets are also used if the product has a considerable size or weight. Configurable standard modules make it easy and fast to create simple as well as advanced layouts for routing, balancing, buffering and positioning of pallets. RFID identification in the pallets enables one piece track-and-trace and production control of the line. Product range, twin track: XT, HU​ Technical specifications Pallet sizes (W×L) XT 240 × 240 mm to 640 × 640 mm Maximum load on pallet: 8 kg per 100 mm of pallet length (PL) HU Up to 1040 mm × 1040 mm Maximum load on pallet: 200 kg Pallet elevator The pallet elevator allows lifting all standard pallets up- or downwards between two different levels. The lifting unit consists of a short XT Compact conveyor, transporting the pallet into or out of the elevator. Two elevator heights can be ordered: • Low elevator • High elevator A number of pallets can be elevated at the same time. ESD version elevators are available.
