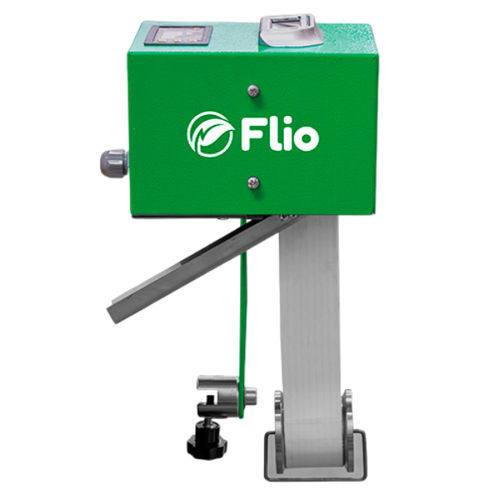

Gravity oil lift drain Minibelt

Product overview
Coolants used in machining machines can become contaminated over time by accumulation of waste oils from slides, hydraulic systems and other machine components. These oils form a surface layer that creates density differences, reduces coolant homogeneity and shortens coolant service life, increasing operating costs.

How MINIBELT works
MINIBELT belt-type oil scrapers collect and remove the floating waste oil film from the coolant surface. By continuously extracting surface oils, the device maintains coolant homogeneity, limits bacterial growth and extends liquid service intervals, resulting in lower maintenance and operating costs.

Application Areas

• CNC and machining centres
• Milling and grinding machines
• Lathes and vertical machining centres
• General production machinery requiring coolant maintenance

Models / Stock information
STOCK CODE | MODEL | FEATURE | POWER | TAPE DIMENSIONS | WEIGHT
108010000152 | MINIBELT F040 | STANDARD | 220V / 380V - 50Hz | 40 x 1600 mm | 3 kg
108020000152 | MINIBELT F041 | WITH TIMER | 220V / 380V - 50Hz | 40 x 1600 mm | 3 kg

Dimensions (mm)
Model | A | B | C | D | E | F
MINIBELT F040 | 161 | 130 | 109 | 315 | 193 | 54
MINIBELT F041 | 161 | 130 | 109 | 315 | 193 | 54

Technical specifications

• Product type: Belt-type oil scraper (MINIBELT)
• Main function: Removes floating waste oils from coolant surface to preserve homogeneity and extend coolant life
• Recommended use: CNC machines, milling, grinding, lathes, vertical machining centres and general production equipment
• Available models: MINIBELT F040 (standard), MINIBELT F041 (with timer)
• Power: 220V / 380V - 50Hz
• Tape dimensions: 40 x 1600 mm
• Weight: 3 kg (each model)
• Dimensions (mm): A:161, B:130, C:109, D:315, E:193, F:54
• Included documents: product PDF available
