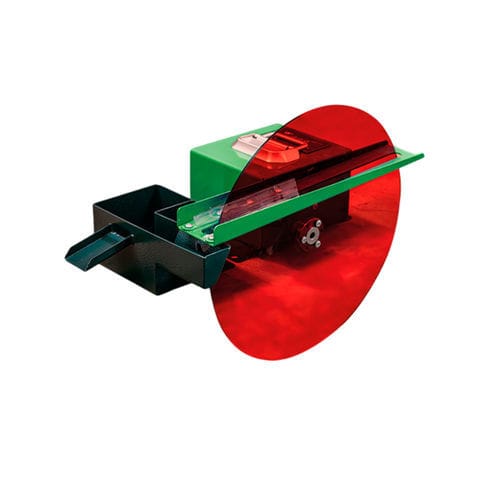

Oil skimmer MINIDISC

discplasticsurface

Product description
MINIDISC disc-type oil skimmers are designed for continuous surface oil removal in industrial applications, especially on CNC machine coolant sumps. Low-density industrial oils rise to the liquid surface and are captured by the rotating scraper disc. Collected oil is removed from the system, preventing part contamination and fluid degradation. Units are supplied flat and, depending on the model, with a timer for intermittent operation to match bench working conditions.

Application areas / Features

• Disc material: mica-plexiglass — lightweight and durable.
• Cost-effective solution for oil separation.
• Non-aggressive operation: does not damage emulsions.
• Smooth disc surface ensures effective skimming and high removal efficiency.

Models
STOCK CODE | MODEL | AIR FLOW | POWER | TAPE DIMENSIONS | WEIGHT
109010000152 | MINIDISC F300 | STANDARD | 220V 50Hz | 40X1600 | 4 kg
109020000152 | MINIDISC F301 | WITH TIMER | 220V 50Hz | 40X1600 | 4 kg

Dimensions (mm)
MODEL | A | B | C | D | E
MINIDISC F300 | 300 | 140 | 100 | 400 | 325
MINIDISC F301 | 300 | 140 | 100 | 400 | 325

Technical specifications

• Type: Disc-type oil skimmer for CNC machines and general industrial sumps.
• Operating principle: uses density difference between oil and water to collect low-density oil on the surface.
• Disc material: mica-plexiglass (lightweight, durable).
• Construction: flat-mounted design; F301 includes a timer for intermittent operation.
• Power supply: 220V 50Hz.
• Tape dimensions: 40 x 1600 mm.
• Weight: 4 kg (each model).
• Benefits: economical, preserves emulsion quality, efficient surface oil removal.
