Abrasive water-jet cutting machine NX Pro series

with programming softwarelarge-formatautomatic

Overview

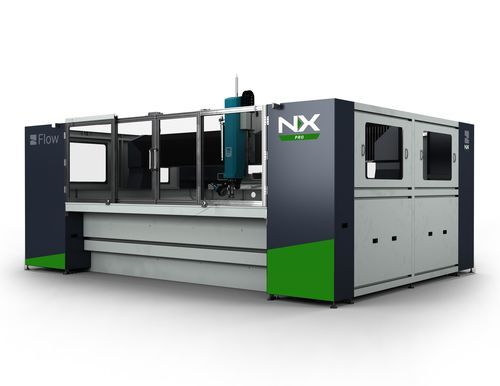

The NX Pro is an industrial waterjet cutting system designed for high uptime and reduced operating costs. It integrates the industry's first fully automated abrasive recycling, an enclosed cutting chamber, energy-saving NX Pump Technology and an updated software suite for intuitive programming and real-time simulation. The system recovers used abrasive for reuse without manual intervention and is engineered for continuous production in fabrication and subcontracting environments.

Key Features

• Smart Containment System — Fully enclosed cutting chamber reduces noise and spray, improves operator access and visibility with integrated LED lighting, panoramic windows and sliding doors.
• Abrasive Recycling — Automated abrasive recovery reduces abrasive consumption and disposal by up to 50%, lowering consumable and waste-handling costs.
• Engineered for Efficiency — NX Pump Technology with variable frequency drive lowers energy use (10–30% savings depending on operating conditions) and uses extended-life components to reduce service intervals.
• Automatic Abrasive Removal — Continuous extraction of spent abrasive using shop air without motors or manual handling.
• Cutting Head Options — Standard Waterjet (garnet abrasive for hard materials); Dynamic Waterjet® (higher speed and accuracy); Dynamic Waterjet® XD (accurate 5-axis motion for compound angles, compatible with Compass software for advanced nesting and motion control).

NX Pro Series Sizes

• NX Pro 2020 — Work Envelope: 2 m x 2 m
• NX Pro 3020 — Work Envelope: 3.05 m x 2 m
• NX Pro 4020 — Work Envelope: 4 m x 2 m
• NX Pro 4040 — Work Envelope: 4 m x 4 m

General Specifications (metric)
Rapid Traverse Maximum: 17.8 m/min
Linear Positional Accuracy: ± 0.0127 mm
Repeatability: ± 0.02 mm
Z-Axis Travel: 305 mm, 610 mm
Work Envelope: NX Pro 2020: 2 m x 2 m; NX Pro 3020: 3.05 m x 2 m; NX Pro 4020: 4 m x 2 m; NX Pro 4040: 4 m x 4 m
Acceleration: 0.1 g
Ballbar Circularity: ± 0.0635 mm

General Specifications (imperial)
Rapid Traverse Maximum: 700 in/min
Linear Positional Accuracy: ± 0.0005 in
Repeatability: ± 0.0008 in
Z-Axis Travel: 12 in, 24 in
Work Envelope: NX Pro 2020: 6'-6" x 6'-6"; NX Pro 3020: 10'-0" x 6'-6"; NX Pro 4020: 13'-1" x 6'-6"; NX Pro 4040: 13'-1" x 13'-1"
Acceleration: 0.1 g
Ballbar Circularity: ± 0.0025 in

Technical specifications

• Rapid Traverse Maximum: 17.8 m/min (700 in/min)
• Linear Positional Accuracy: ± 0.0127 mm (± 0.0005 in)
• Repeatability: ± 0.02 mm (± 0.0008 in)
• Z-Axis Travel: 305 mm, 610 mm (12 in, 24 in)
• Work Envelope options: 2 m x 2 m; 3.05 m x 2 m; 4 m x 2 m; 4 m x 4 m
• Acceleration: 0.1 g
• Ballbar Circularity: ± 0.0635 mm (± 0.0025 in)
• Abrasive recycling reduces abrasive consumption and disposal by up to 50%
• NX Pump Technology provides 10–30% energy savings depending on operating parameters
