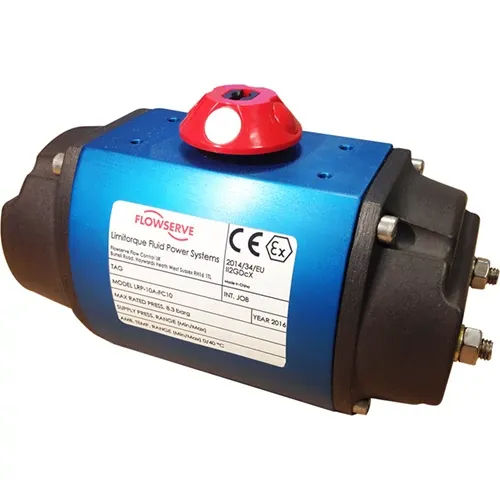

Pneumatic actuator LRP serieslinearpistonrack-and-pinion
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- linear
- Technology
- piston, rack-and-pinion
- Configuration
- spring-return
- Material
- stainless steel, anodized aluminum, steel
- Norms
- ISO, VDI/VDE 3845
- Protection class
- robust
- Other characteristics
- high-performance, NAMUR, corrosion-resistant, ATEX
- Pressure
Max.: 120 psi
Min.: 29 psi
- Torque
Max.: 1,250 ft.lb
Min.: 0 ft.lb
- Operating Temperature
Max.: 300 °F
(149 °C)Min.: -40 °F
(-40 °C)
Description
The Limitorque LRP series is a robust, reliable rack and pinion actuator designed for high performance automation of quarter turn valves in a wide range of applications.
Balanced double rack and pinion mechanism
Namur VDI/VDE 3845 top mouting pattern for easy fitting and interchangeability of accessories
ISO mounting with star drive output for simplified valve coupling
Unique support rods absorb side loads from piston, guaranteeing longer service life and high performance stability.
Specifications
IEC 61508 SC3
Configurations
Spring return and double acting configurations available (fail open, fail close and fail-in-place capability)
Fast acting version available on request
LimiGuard high performance chemically bonded PTFE coating or Epoxy painting to customer specification, available on request
