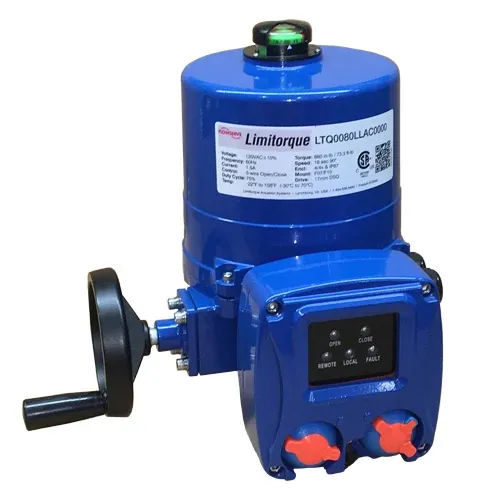

Electric actuator LTQ series

rotaryDC24 V

The Limitorque LTQ compact, quarter-turn electric actuator delivers superior reliability and performance through its industry-proven epicyclic locking gear set design. It is ideal for applications that require a simplistic, non-networked and cost-effective quarter-turn actuator that has analog controls, torque switches, limit switches, and discrete position feedback capabilities. The limit and torque switches, standard controls and a wide range of output offerings allow a higher degree of customization that can meet exacting customer needs. Ease of operation from a highly visible valve position indicator, which makes at-a glance position checking easier than ever Standard 10A 125VAC auxiliary switches Lower total cost of ownership from robust design that incorporates self-locking, permanently lubricated drive for maintenance-free operation over the life of the actuator Minimized maintenance costs facilitated by compact housing that allows quick and simplified upkeep Superior reliability and repeatability from the limit and torque switches Specifications NEMA 4/4X AWWA C542 CSA XP Q2/2020 Configurations 2/3/4 wire discrete controls Mod 4-20mA/2-10V NCU or BIC options 12/24DC, 1PH, 3PH 50/60 Hz up to 575 Q2 2020 fail-safe Internal backup battery or supercap for DC units Low-temp: -40°C (-40°F)
