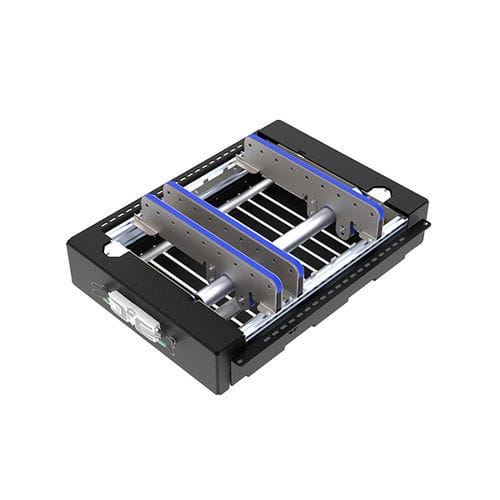

Diverter sorter X-Flow 90

industrialautomaticfor conveyor

Introducing X-Flow 90, an innovative solution for effortless product transfer at +-90° degrees. The robust design ensures durability and stability. The belts are made of a special, anti-slip composite material and are guided internally, which prevents them from jumping off. Benefit from the flexibility of leading edge orientation and the easy installation. Thanks to the modular design, Flowsort can support a wide range of applications. This solution is designed for easy and quick installation, thanks to the variable and flexible module sizes and the pre-written PLC function blocks. In the dynamic world of material handling, speed, efficiency and reliability are crucial. Experience all three with the cutting-edge technology of Flowsort. Product information Standard width: 400 & 600, up to 820 mm (with custom flanges) Module length: 710 mm & 870 mm Module height: 272 mm (mounted between frames) Diverting angle: -90°& +90° Max sorting capacity: 1700 PPH Max load: 50 kg Min parcel dimension: 150mm x 150mm Max parcel width: 820mm CONTROL Motor drive for lift: 24V Pulse gear drive Motor drive for transport belt: 24V Pulse gear drive Maximum speed: 0.41 m/s Sensors: 2 positioning sensor Control: ConveyLinx-AI2 / Protocols: Profinet, Ethenet I/P, Modbus TCP, CC –link or MotionLynx / Ethercat | standardI/O pin via M8 connector
