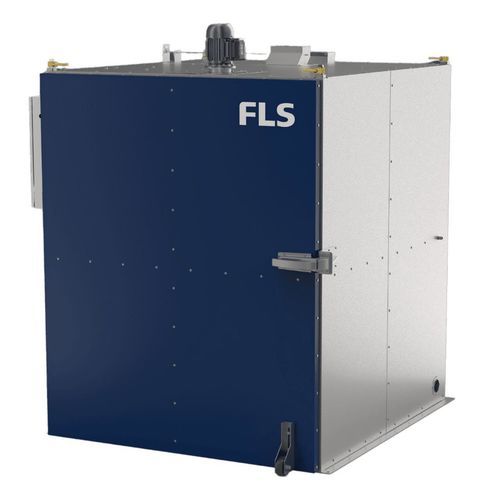

Chamber oven Essa® DO series

truck-inrotarydrying

Overview
Dry samples with laboratory-grade drying ovens designed for controlled, repeatable results. The range includes forced-air convection ovens (Essa® DO series) and infrared drying solutions (Essa® RD series). Equipment is specified for thermal stability, directed heating options and suitability for a range of sample types from small test loads to higher-capacity production trays.

Key benefits

• Reduced drying time: Thermally efficient construction (insulated walls, 5 mm steel plate floors, positive door closure) and design choices such as rotary drums and infrared heating accelerate moisture removal.
• Energy-efficient heating: Infrared systems concentrate energy at the sample surface to minimise heating of ambient air; directed hotplate and overhead lamp arrangements reduce overall energy consumption for many sample types.
• Operator-friendly controls and handling: Intuitive controllers and clear temperature displays (optional HMI), ergonomic wheel-in/wheel-out trolleys and simplified loading/unloading support safe, repeatable workflows.

Models and product highlights

• Essa® DO1: Compact electric drying oven for standard mineral laboratory testing. Stainless-steel inner lining, fibreglass insulation, 5 mm steel-plate door with positive closure. Recommended operating temperature: 105°C; maximum 120°C. Total shelf area on trolley: 4.5 m².
• Essa® DO2: Larger production oven with two wheel-in/wheel-out trolleys, total shelf area ~15 m². Stainless-steel lining, fibreglass insulation and powder-coated mesh trolley racks to limit contamination. Heating up to 120°C; designed for high-throughput laboratory environments.
• Essa® DO-L200: Hot-air circulation oven for moisture determination (e.g. ISO 3087). Constant chamber temperature via specialised door/blade technology. Robot‑automation ready with minimal door opening; tray size 450 x 570 mm, capacity 18 trays. Suited for close integration with weighing equipment for automated moisture workflows.
• Essa® RD10 (infrared): Tray dryer using overhead infrared lamps for rapid drying of samples up to ~8 kg. Surface-temperature monitoring enables precise control.
• Essa® RD10HMI: Tray dryer combining overhead infrared lamps with an under-sample hotplate to accelerate drying. Colour touchscreen HMI for setpoint and actual values; pyrometer monitors lamp temperature; contactless sensor and dimmer for lamp control; thermocouple measures hotplate temperature.
• Essa® RD20HMI / RD20XL: Intelligent infrared tray dryers with advanced monitoring and HMI controls. RD20XL provides extra-large sample capacity for higher productivity.
• Essa® RD51 (infrared rotary dryer): Infrared rotary drum dryer for samples around ~15 kg. Rotating drum maintains sample movement and exposes changing surface area for faster, more even drying. Temperature-controlled infrared head transfers heat directly to samples.

Construction & features

• Stainless-steel inner linings with fibreglass insulation for thermal stability and corrosion resistance.
• Positive door closure and sealing to maintain chamber temperature and reduce heat loss.
• Optional HMI touchscreen controls on selected models for precise setpoint management and process monitoring.
• Infrared heating (RD series) provides directed energy to sample surfaces, reducing energy lost to ambient air.
• Combined heating (RD10HMI) uses overhead infrared lamps plus an underlying hotplate for faster drying of selected sample types.
• Automation-ready designs: DO-L200 and select RD models accommodate robot integration and automated sample workflows.
• Optional features: load-cell moisture monitoring with auto-stop (on specific RD configurations), pyrometer/thermocouple measurements, and web-interface options for data logging and reporting.
• Ergonomic trolleys and wheel-in/wheel-out systems simplify handling and minimise heat loss during transfers.

Technical specifications

• Maximum operating temperature (DO series): up to 120°C (typical recommended operating example: 105°C).
• DO1 trolley total shelf area: 4.5 m².
• DO2 total shelf area: ~15 m² (two wheel-in/wheel-out trolleys).
• DO-L200 tray size: 450 x 570 mm; capacity: 18 trays; suitable for automated robot feeding and moisture determination (e.g. ISO 3087 applications).
• RD10 / RD10HMI tray capacity: up to ~8 kg (tray dryer).
• RD20HMI: advanced HMI, set-time range 1–300 minutes and auto-stop (intelligent moisture-based stop) available on some configurations.
• RD51: rotary infrared dryer for samples around 15 kg with continuous movement for faster drying.
• Construction materials: stainless-steel chamber, fibreglass insulation, 5 mm steel-plate door/floor on selected models.
• Heating technologies: forced-air convection (DO series), infrared lamps (RD series), optional under-sample hotplate on selected models.
