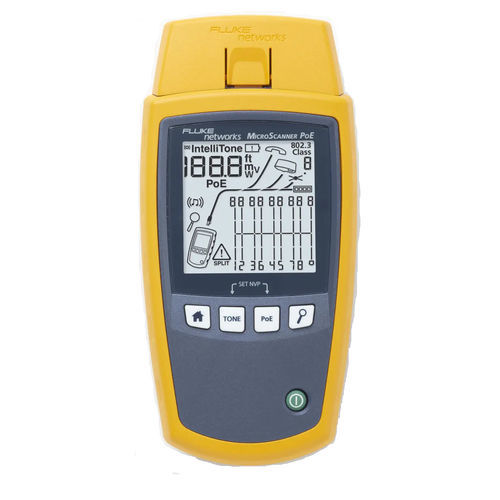

Voltage tester MicroScanner™

Ethernet networkcommunication networkcable

The technician’s tool for installing and troubleshooting Ethernet devices. MicroScanner PoE Capabilities: • Quickly determine if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device (PD). • Ethernet Alliance Certified to IEEE-802.3™ PoE standards for reliable multivendor interoperability • Information for the Network Engineer to investigate potential switch configuration or malfunctions. • PoE  Switch Verification – Determine if a switch port can provide enough power by reporting PoE class (0-8). • Powered Pairs – Graphically identifies powered pairs. Including Dual Signature where the switch port delivers power on 2 or 4 pairs (802.3bt or PoE ++) • Active Switch Detection - Determine if a cable is connected to a switch port and port speed up to 10G • Cable Testing – Identify any shorted, open or crossed wires at both ends, length of each pair, and send tones to find cables. • Validate and troubleshoot your Industrial Ethernet copper cabling • PoE Injector verification - Display injector voltage level   MicroScanner Series Features: • Straightforward Interface – Graphical wiremap, length, cable ID, and distance to fault displayed on one screen • Multimedia Support – Tests all common media types including RJ11, RJ45, Coax(MS2 only), with no need for adapters • IntelliTone Toning – Trace virtually any cable or wire pair with IntelliTone digital and analog toning • VDV Service Detection – Verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE
