temperature data logger / USB / Bluetooth / without display

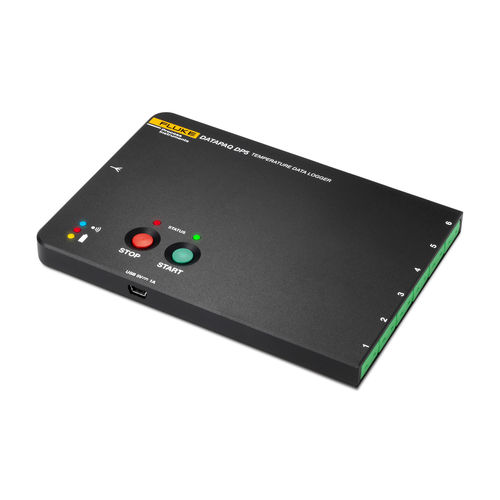

Datapaq® DP5

{{requestButtons}}

Characteristics

  • Measured quantity:

    temperature

  • Connector type:

    USB, Bluetooth

  • Display:

    without display

  • Applications:

    for monitoring, for ovens

  • Other characteristics:

    digital, programmable, high-accuracy, compact, battery-powered, rugged

Description

The Datapaq DP5 range of data loggers is intended for temperature profiling in short and medium-duration processes, especially in the electronics and paint & powder-coating industries, but also in primary and secondary metals production, in glass manufacturing, and in solar/photovoltaics manufacturing.
The series is optimized for ovens with a low clearance which makes it ideal for reflow solder applications. Various compact loggers are available with six and 12 measurement channels. They provide a ±0.5 °C accuracy and a ±0.1 °C resolution over the full measuring and operating temperature ranges.
Measurements can be started and stopped manually, via two color-coded buttons, or triggered by time or temperature. The loggers combine ease of use with excellent availability and minimal running costs: they feature a user-replaceable NimH battery pack, which can be recharged from any USB port. One 90-minute charge allows for more than 40 hours of profiling.
One logger can survey up to 10 ovens in succession, storing individual profiles with up to 600k data points in total. Downloads via USB or Bluetooth can therefore be scheduled more efficiently. An integrated radio transmitter optionally provides real-time data from within the process.
All Datapaq DP5 loggers are supported with a full one-year warranty.
Fluke Process Instruments provides a comprehensive product portfolio for all temperature profiling needs: high-accuracy, industrial-strength data loggers; thermal barriers that protect the electronics in high-temperature processes – for days, if needed; industry-specific Datapaq Insight analysis software; and fast-response, high-temperature thermocouples.
