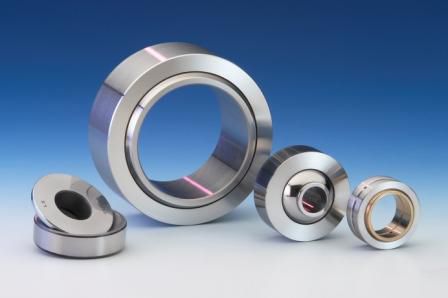

Spherical plain bearing GE..EC(-2RS)swivelsteelchrome
Add to favorites
Compare this product
Characteristics
- Type
- spherical, swivel
- Material
- steel, chrome, PTFE
- Other characteristics
- maintenance-free
- Inside diameter
Max.: 300 mm
(11.81 in)Min.: 4 mm
(0.16 in)- Length
Max.: 165 mm
(6.5 in)Min.: 5 mm
(0.2 in)
Description
Spherical Plain Bearings. steel running on PTFE. maintenance-free
For use at high uni-directional loads
Materials:
-Insert: Bearing steel to 100Cr6. Aisi 52100. with PTFE liner bonded to the inner surface
From size 15 available sealed (-2RS) from both sides
From size 35 only with available sealed (-2RS) on both sides
From size 4 to 50. when not selaed C-45 witz PTFE liner bonded to the inner surface
-Ball:Bearing steel to 100Cr6. Aisi 52100. hardened. ground. polished hard chrome plated
