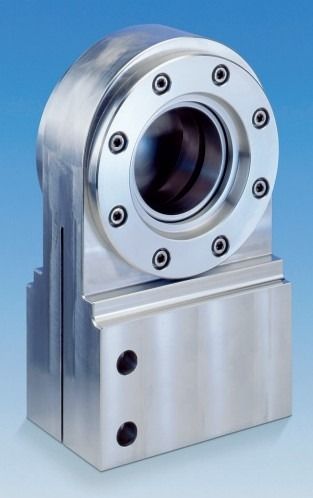

Female rod end FPR..S
for hydraulic cylindersplain bearing

female rod end
female rod end
female rod end
Add to favorites
Compare this product


Characteristics

Connection type
female
Other characteristics
plain bearing, for hydraulic cylinders

Description

Rod Ends fastened by hexagon socket head cap screw to DIN 912-8.8Spherical Plain Bearings. regreasable. fixed through caulking on both sides For use in standard hydraulic cylinders 160 bar to ISO 6020/2 Materials: Housing - Up to size 50 forged from heat-treated steel to C45. Aisi 1045 From size 80 made from nodular cast iron GS400 Bearing - Steel on steel bearing GE...E, requiring lubrication Greasing: - Size 12 is not regreasable From size 16 to 20 fitted v.'ith grease hole in housing From size 25 fitted with hydraulic grease nipples to DIN 71412 On request: - With left hand thread (FPL. S)
