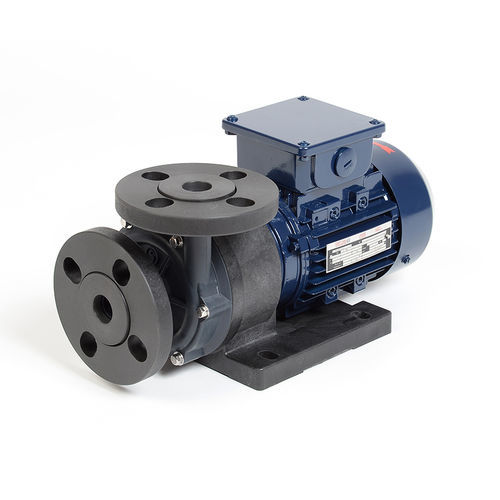

Centrifugal pump MA BG2 for chemicalsmagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Material
- PP
- Voltage
- 400 V, 380 V
- Protection level
- IP55
- Other characteristics
- single-stage
- Flow
40 l/min, 70 l/min, 80 l/min, 100 l/min
(10.56688 us gal/min, 18.49204 us gal/min, 21.13376 us gal/min, 26.41721 us gal/min)- Pressure
1.5 bar, 2 bar, 3 bar
(21.756 psi, 29.008 psi, 43.511 psi)- Head
7 m, 8 m, 10 m, 15 m
(22'11" , 26'02" , 32'09" , 49'02" )- Power
0.18 kW, 0.25 kW
(0.24 hp, 0.34 hp)- Fluid temperature
70 °C, 80 °C
(158 °F, 176 °F)- Length
344 mm, 375 mm
(14 in, 15 in)- Width
127.6 mm, 139 mm
(5.02 in, 5.47 in)- Height
162 mm, 172 mm
(6.38 in, 6.77 in)- Weight
5.6 kg, 6 kg
(12.35 lb, 13.23 lb)
Description
without shaft seal
streamlined housing made of PP or ETFE
discharge head of MA pump type 2 is up to 8m.Wg, of MA pump type 3 up to 15m.Wg
horizontal single-stage monoblock design
