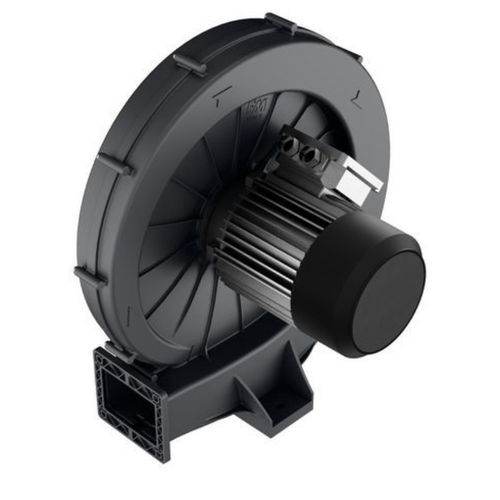

Air blower AL-GB-IE4

centrifugalburnersuction

General information
The AL-GB-IE4 - GreenBlow Plus is a centrifugal blower designed for air extraction, blowing and recirculation in industrial installations. Main materials: casing PC/ABS GF; impeller PS6I/X GF. Operating temperature range: -20°C to +60°C.

Product features

• Centrifugal blower architecture suitable for ducted extraction and local air handling.
• Thermoplastic PC/ABS casing reduces unit weight, enabling installation above production lines.

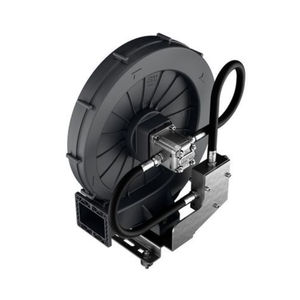

• Available motor options: standard motors and inverter-drive variants (IE3, IE4, PLS).
• Inverter-driven versions are programmable for remote control and Industry 4.0 system integration.

Variants / SKUs

• F120029004 — AL.GB PLS IE4 — Grey
• F120029004/A — AL.GB PLS VB — Visual Blue

Special versions on request

• Motors with UL or CSA certification.
• Motors manufactured to customised specifications.

Applications & integration

• Air extraction, blowing or recirculation in industrial process lines.
• Low weight enables flexible mounting, including above-line installations.
• Inverter versions support remote control and integration into Industry 4.0 architectures via programmed drives.

Technical specifications

• Commercial name: GreenBlow Plus
• Model / SKU(s): AL-GB-IE4 (grouped SKUs: F120029004, F120029004/A)
• Materials: casing PC/ABS GF; impeller PS6I/X GF
• Operating temperature: -20°C to +60°C
• Motor options: standard motors; inverter-driven variants (IE3, IE4, PLS)
• Integration: programmable inverters for remote control and Industry 4.0 connectivity
• Special motor versions: UL, CSA or customised specifications available on request

Documents
Comparative model table and product PDF snapshot available from the product page.
