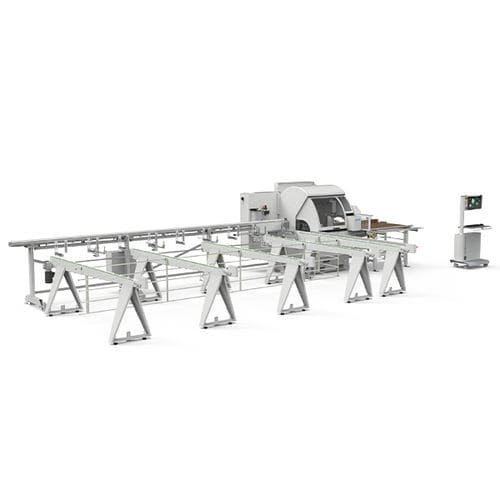

Vertical blade cut-to-length cutting line LT 600
barwith programming softwareautomated loading/unloading

Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading - image - 2
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading - image - 3
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading - image - 4
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading - image - 5
Vertical blade cut-to-length cutting line - LT 600 - Fom Industrie Aluminium Working Machinery - bar / with programming software / automated loading/unloading - image - 6
Add to favorites
Compare this product
Go to the Fom Industrie Aluminium Working Machinery website for more information

Characteristics

Technology
vertical blade
Product handled
bar
Control type
with programming software
Workpiece loading
automated loading/unloading, with automatic loader
Other characteristics
90°, with roller feeder, to length, with automatic feeder

Description

Overview
The LT 600 system produces parts cut to size using a bar loading system and a cutting machine with an up‑feed blade. 11 versions are available, configurable by depth and length of loading/unloading magazines, feed direction (right/left) and cutting unit type.

Main features
  • Cutting unit: up‑feed blade with 90° lead‑out for 90° cuts.
  • Bar loading system: automatic loading magazine for accumulation and horizontal transfer of profiles. Version with loading roller table available.
  • Loading capacity: 9 to 13 bars can be loaded depending on the version.
  • Controlled bar feeder: integrated inside the cabin.
  • Unloading magazine: allows accumulation and compacting of the cut pieces. Versions available with plane out or unloading tunnel.
  • Multiple configurable options: depth and length of magazines, feed direction (right/left) and cutting unit type.

Integrated software
FSTLine is the management software for Fom Industrie cutting and machining lines. FSTLine allows users to complete all phases of machine programming using a single application, from programming machining operations to work‑list management.

Documentation
Product details, brochure and software catalogue are available as technical documents for the LT 600.

Notes
The images shown are for illustrative purposes; the machine may be modified for technical or commercial reasons without prior notice.

Technical specifications
  • Model name: LT 600
  • Cutting blade diameter: Ø 600 mm (up‑feed blade for 90° cuts)
  • Cut type: 90° cuts with up‑feed blade lead‑out
  • Machine configuration: 11 versions available
  • Loading magazine: accumulation and horizontal transfer; version with loading roller table available
  • Loading capacity: 9–13 bars (according to the version)
  • Bar feeder: controlled bar feeder located inside the cabin
  • Unloading: magazine allows accumulation/compacting of cut pieces; plane out or unloading tunnel options
  • Configurable parameters: depth and length of loading/unloading magazines, feed direction (right/left), cutting unit type
  • Software: FSTLine management software for programming and work‑list management

Catalogs

LT 600
LT 600
2 Pages
