Circular saw MIRAGE 600for metalsfor barsautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Treated material
- for metals
- Applications
- for bars
- Operational mode
- automatic, CNC
- Other characteristics
- programmable, with automatic feeder, with electronically-controlled pusher system
- Circular saw blade diameter
600 mm
(24 in)
Description
Product overview

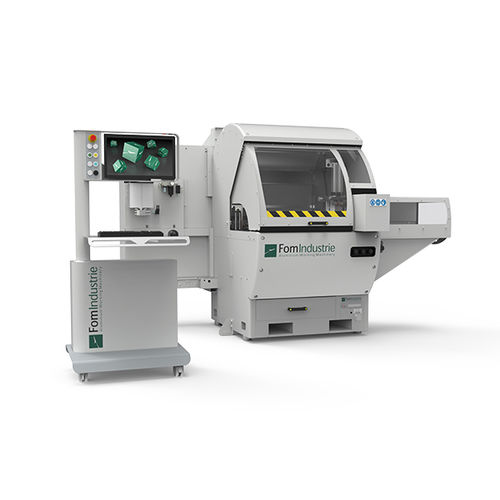

Automatic up-feed blade sawing machine for automatic bar cutting with electronically controlled bar feeder and fixed 90° cut. Equipped with tungsten carbide (Widia) blade Ø600 mm and FSTLine numerical control for programming and production management.
Key features
Integrated software
Documentation
Technical specifications
Automatic up-feed blade sawing machine for automatic bar cutting with electronically controlled bar feeder and fixed 90° cut. Equipped with tungsten carbide (Widia) blade Ø600 mm and FSTLine numerical control for programming and production management.
Key features
- Electronically controlled bar feeder for automatic material feeding
- 90° fixed cut configuration
- Tungsten carbide (Widia) blade Ø600 mm in up-feed configuration
- 2 horizontal clamping vices and 2 vertical clamping vices
- Vice pressure reduction device with pressure gauge
- FSTLine numerical control integrated
- Accessories: chip/blow-off nozzle and integrated protection kit
Integrated software
- FSTLine: management and programming software for Fom Industrie cutting and machining lines; enables programming of operations, work list management and centralized control within a single application.
Documentation
- Technical data sheet (product specifications)
- Brochure (technical-commercial)
Technical specifications
- Model: MIRAGE 600
- Machine type: Automatic up-feed blade sawing machine
- Operation: Automatic sawing with electronically controlled bar feeder
- Cut angle: 90° fixed cut
- Blade: Tungsten carbide (Widia) blade, Ø600 mm
- Bar feeder: Electronically controlled bar feeder
- Numerical control: FSTLine
- Clamping: 2 horizontal vices and 2 vertical vices
- Accessories/controls: Vice pressure reduction device with pressure gauge, chip/blow-off nozzle, integrated protection kit
