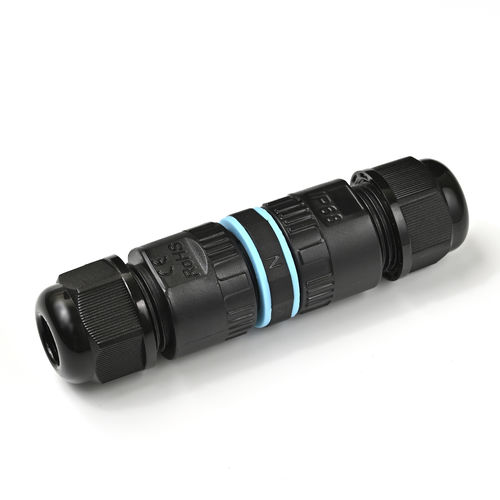

Waterproof connector M684-Bdataelectrical power supplycoaxial
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- coaxial, Socket
- Shape
- circular, cylindrical
- Connection type
- screw, locking
- Electrical characteristics
- power, insulation, AC, DC, insulated
- Material
- nylon, brass, stainless steel
- Product applications
- for cables
- Domain
- outdoor, for LED lighting, for lighting applications, for underground distribution, underwater, marine
- Protection class
- IP68
- Norms
- RoHS
- Other characteristics
- waterproof, immersion, corrosion-resistant
- Primary current
24 A
- Voltage
450 V
Description
Core: 2Pin/3Pin/4Pin
Rated connecting capacity: 0.5 ~ 2.5mm²
Introducing our IP68 waterproof connector, engineered to provide reliable and durable connections in demanding environments. This waterproof connector is designed to withstand immersion in water up to a certain depth, making it ideal for outdoor and harsh industrial applications.
Housing - Nylon +PC
Working Temperature - T105
Available cable diameter（Rubber） - 4-8mm/ 6-11mm（Rubber cable）
Refer to stripping length - External stripping 22mm
Internal stripping 6mm
Waterproof Testing - 20M 150hours
Product Size - 91.65mm*25.02mm
Certification - KEMA ,ETL,ENEC,CE,CB,SAA,ROHS
