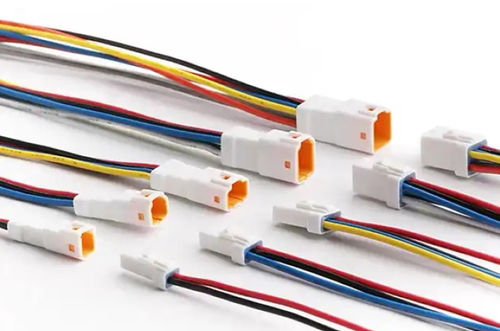

Waterproof connector JWPFdataelectrical power supplyAC/DC
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Electrical characteristics
- AC/DC
- Product applications
- for air conditioning
- Domain
- for harsh environments, for automotive applications, for lighting applications, for vending machines, for marine applications
- Protection class
- IP67
- Other characteristics
- IEC, waterproof, with cable
- Primary current
3 A
- Voltage
100 V
- Pitch
2 mm
(0.079 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -55 °C
(-67 °F)
Description
option: 2/3/4/6/8 pin
Contact resistance:
Initial value/ 10 mΩ max.
After environmental tests/ 15 mΩ max.
Insulation resistance: 1000 MΩ min.
Withstanding voltage: 1000VAC/minute
Applicable wire gage: AWG# 24 to 22
Waterproof level: IPX7 of IEC 60529
This WP waterproof connector can be used for the place of which especially waterproof is required.
This is the wire-to-wire connector that is grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529).
• Waterproof performance
• Contained seal ring
• Solid rubber seal
• Double-spring construction
• Housing-to-terminal locks
• Inner-housing lock
Applications:
Domestic Appliance
Power
Vending
Air Conditioning
JWPF waterproof connector lines are a popular choice for many industries due to their superior contact performance and waterproof capabilities. These connectors are designed to withstand harsh environments and provide reliable connections in a variety of applications.
