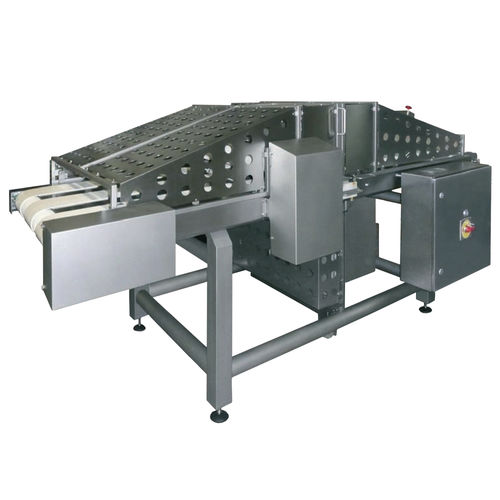

Automatic slicing machine HSM-3

• Three independent lanes for: – Graded fillets – Single or multiple slices – Butterfly cuts • Guaranteed slice thickness or weight depending on adjustment and precutting • Made to suit any of your slicing needs: – for product height up to 50 mm/2” – for product width from 50 mm/2” to 140 mm/51/2” – with slicing kits for up to 5 blades • Production rate > 120 fillets/min • Short oscillating blades for a high quality cut and long blade life • No heat development, no cooling water needed • Floating hold down belts • Allan Bradley inverters for variable belt speed and slicing speed • Extremely heavy-duty, designed for minimum downtime and maintenance • Powerful gear motors: – 1 x slicing unit – 1 x bottom conveyor belt – 1 x top compression belt • Conveyor belts 180 mm/7” wide with FDA quick connectors • Properly guarded for safe operation, complies with latest safety and hygiene requirements • Cleans easily with only slicing kits to be removed • Designed for operator friendly and quick adjustments, machine controls on product loading side • Made in stainless steel and other FDA approved non corrosive materials • Water spray system for top and bottom belts optional Key Benefits: • Butterfly slicing kit for single chicken fillets • For product height up to 50 mm / 2” • For product width from 50 mm / 2” to 140 mm / 5 1/2” • With slicing kits for up to 5 blades TECHNICAL SPECIFICATIONS • Stainless steel frame and motor • Motor (IP66) power supply HSM-3: - 3 x 2,7 kW Machine dimensions: - Length: 2924 mm - Width: 1306 mm - Height: 1310 mm - Weight: approx. 580 kg
