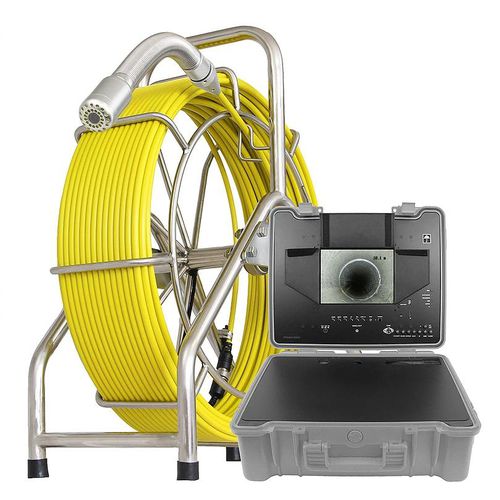

Flexible video endoscope LUMINO 10

for pipe inspectionfor pipeslighting

The stable LUMINO series offers the camera head with a big diameter and long cable, which are easy for your inspections for big pipes with long distance. Diameter range of service: DN70 - DN150 Dimensions: Φ 40 × 42 mm Passage of elbows: ≥ 70 mm 512 Hz transmitter: built-in Materials: housing in stainless steel, lens in sapphire crystal Focal length: 10 to 20 cm, fxed Resolution: 0.5 mega-pixel Lighting: 30 LEDs Waterproof: IP68, 1 bar Max. Operational temperature: -20°C to 55° Weight: 154 g Cable material: fbre glass Diameter & length: Φ 8 mm & 60 m Meter counting: built-in Power supply: by the control station Protection rating: splash-proof Operational temperature: -28°C to 50°C Weight & dimensions: 14,9 kg, 52 × 28 × 61 cm Screen: 10’’ TFT, 800 × 600 PX resolution Autonomy: ≥ 4 h Power supply: 220 VAC / Li-Ion battery Photo / video (JPEG / AVI) / audio Recording Ports: 1 × USB, 1 × SD, 1 × video input, 1 × video output Case: standard in ABS, splash-proof Weight & dimensions: 2.5 kg, 27 × 22 × 10 cm
