Modular conveyor belt

polyamidepolyesterthermoplastic

Product overview

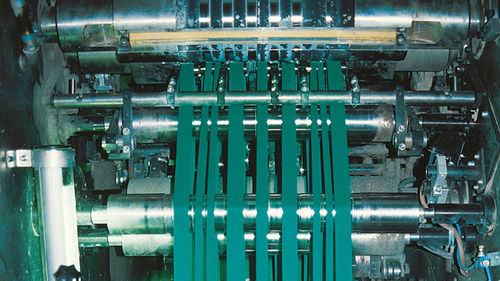

Forbo Movement Systems (Siegling) supplies machine tapes and conveyor belts designed for conveying, folding and packaging printed and unprinted paper. The Siegling Extremultus machine tapes and Siegling Transilon conveyor belts cover functions from feeders to post‑press and packaging machines, with the Extremultus E‑line offering a modular thermoplastic tension member construction.

Key features

• Modular thermoplastic tension members with polyester fabric for dimensional stability
• Wear‑resistant surface options: elastomer, fabric, soft polyamide, Linatex coatings
• Product families: Siegling Extremultus (machine tapes), Siegling Transilon (conveyor belts), folder and carrier belts
• Available configurations for high‑speed folder belts (examples >17 m/s depending on application)

Applications / Processes

• Commercial web offset (roll printing) and heatset applications
• Sheet‑fed offset and single‑sheet feeders
• Rotogravure and other rotary printing processes
• Newspaper printing with abrasive paper handling
• Post‑press operations: rotary cutters, cross‑lappers, stackers, saddle stitchers, adhesive binders, inserters, rotary magazines, film packaging and conveying lines

Benefits & performance highlights

• Precise conveying and feeding to maintain production continuity
• High abrasion resistance and selectable low‑friction surfaces for sensitive media such as newsprint
• Ability to exploit machine performance via modular tension members and durable coverings
• Folder belts designed for stable operation at elevated speeds where required

Documentation

• Machine Tapes for the Printing Industry
• Machine Tapes for the Paper Industry and Letter Sorting
• Siegling Extremultus Folder and Carrier Belts
• Folder and Carrier Belts with Linatex Coating
• Printing Blankets for Digital Printing

Technical specifications

• Brand: Forbo Movement Systems (Siegling)
• Primary products: Siegling Extremultus machine tapes, Siegling Transilon conveyor belts, folder and carrier belts
• Tension member: modular thermoplastic construction with polyester fabric (E‑line)
• Surface options: elastomer, fabric, soft polyamide, Linatex; selected for abrasion resistance, friction and product handling
• Typical uses: conveying, folding, feeding and packaging of printed and unprinted paper across printing and post‑press equipment
