Roll-up curtain

PVCfor door

Product overview

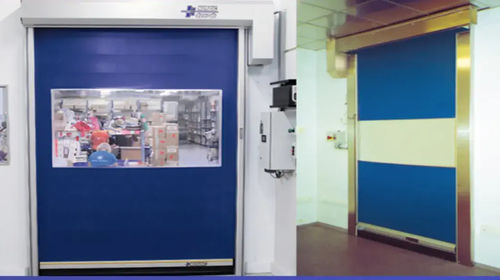

High-speed PVC roll-up doors are customised solutions for industrial environments such as warehouse aisles, production areas and other facilities requiring frequent opening and closing. Curtains for roll-up doors are manufactured to meet requirements for wear resistance, chemical tolerance and operational safety.

Materials and performance
PVC curtains are laminated onto high-strength polyester fabrics to provide dimensional stability and suitability for continuous operation in demanding conditions. Variants include finishes and treatments for specific industry needs.

Applications

• Clean rooms — open and close rapidly to limit dust ingress; can be installed in airlocks for enhanced hygiene.
• Pharmaceutical manufacturing — tight, fast curtains reduce contamination risk in production zones.
• Cold stores — reliable operation at low temperatures and under rapid cycling.
• Warehousing — designed for high opening/closing frequency.
• Supermarkets — straightforward solution for service and security openings.
• Wood processing — large clear openings for conveying sawn timber.
• Special applications — paint protection screens and guards for bespoke industrial needs.

Key features

• Lengthways flexibility — rolls on and off drums without deformation
• Operating temperature range: -30 °C to +100 °C — suitable for year-round use
• Dimensional stability — polyester substrate prevents elongation under load
• Thermal and acoustic insulation — contributes to lower energy costs and reduced noise
• Flame retardant versions to EN ISO 20340 — options for improved fire performance
• FDA and USDA compliant variants — available for food industry environments
• EN ISO 20284 antistatic finish — reduces static build-up for improved cleanliness
• Available in multiple colours — visual customisation possible
• Narrow weld seam option — minimises milky haze for clearer vision through windows

Optimum visibility through roll-up door windows
Narrow weld seams achieved by high-frequency welding minimise milky areas and improve sightlines and safety where glazed sections are required.

Recommended variants

• E 8/2 V1/V1 blue
• E 8/2 V1/V1 NA orange
• E 8/2 V1/V1 white
• E 8/2 V1/V1 NA red
• E 8/2 V1/V1 grey
• E 8/2 V1/V1 NA yellow
• E 8/2 V1/V1 SE anthracite grey
• E 8/2 V2H/V2H MT/MT white FDA (for the US market only)
• E 8/2 V2H/V2H MT/MT blue FDA (for the US market only)
• E 8/2 V2H/V2H MT/MT red FDA (for the US market only)
• E 18/3 V1/V1 blue (for the US market only)
• E 18/3 V1/V1 orange (for the US market only)
• E 18/3 V1/V1 brown (for the US market only)
• E 8/2 V1/V1 NA brown (for the US market only)
• E 8/2 V1/V1 grey (for the US market only)
• E 18/3 V1/V1 grey (for the US market only)

Technical specifications

• Material: Polyvinyl chloride (PVC) laminated on high-strength polyester fabric
• Temperature range: -30 °C to +100 °C
• Lengthways flexibility: Rolls on and off drums without deformation
• Dimensional stability: No elongation under load — maintenance-free
• Insulation: Thermal and acoustic properties to reduce energy consumption and noise
• Fire safety: Versions available conforming to EN ISO 20340
• Food industry versions: FDA and USDA compliant options available
• Antistatic finish: EN ISO 20284 option
• Appearance: Multiple colours available; customisation possible
• Window welding: Options for narrow or broad weld seams; narrow seams reduce milky haze and improve visibility
• Suitable applications: Clean rooms, pharmaceutical manufacturing, cold stores, warehousing, supermarkets, wood processing and specialised industrial requirements
