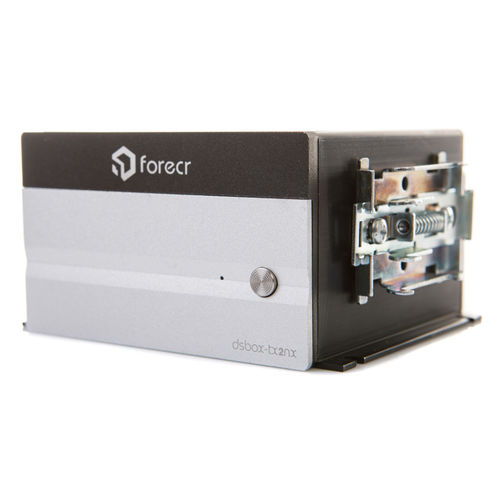

Process video surveillance PC DSBOX-TX2NX

boxdual-coreARM® Cortex®-A57 quad-core

Industrial Fanless Box PC with NVIDIA Jetson TX2 NX Industrial Box PC platform for deep learning based video processing and Industrial IOT applications. DSBOX-TX2NX is your chosen edge analytics computing platform which serves as a compact solution for industrial environments with its durability. It can process up to 14 simultaneous video streams using modern DL based AI algorithms. DSBOX-TX2NX can encode up to eight and decode up to 14 video streams in 1080p at 30 FPS. When used with NVIDIA®’s DeepStream SDK, simultaneous video processing applications can be deployed with outstanding AI performance. DSBOX-TX2NX offers various interface options that allows it to be used in any industrial system and provides customization options with internal interfaces. It has a wide operating temperature and input range, industrial grade components, screw-lock power and IO connectors to eliminate the risk of unwanted disconnections. Features: CPU - Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core ARM® Cortex®-A57 MPCore processor GPU - 256 core NVIDIA Pascal™ GPU Memory - 4 GB 128-bit LPDDR4 Graphics Interfaces - 1xHDMI 2.0(max resolution 3840x2160) Interfaces - 1x Gigabit Ethernet 2x USB 3.1 Type-A 1x CAN Bus 1x RS232/422/485 (software configurable) 2 Digital Inputs / 3 Digital Outputs Wireless Communication - WiFi/Bluetooth/LTE/ 5G Connectivity by extension sockets Power Supply - 9-28 VDC Internal Extension Sockets - 1x M.2 Type-E Key, 1x M.2 Type-B Key Internal Mass Storage - 16 GB eMMC 5.1 Flash, 1x MicroSD 1x M.2 Key-M SSD Slot Ambient Conditions - -25°C … +65°C Form Factor / Dimensions - 110 mm x 130 mm x 60 mm Operating Systems - Ubuntu Linux 18.04
