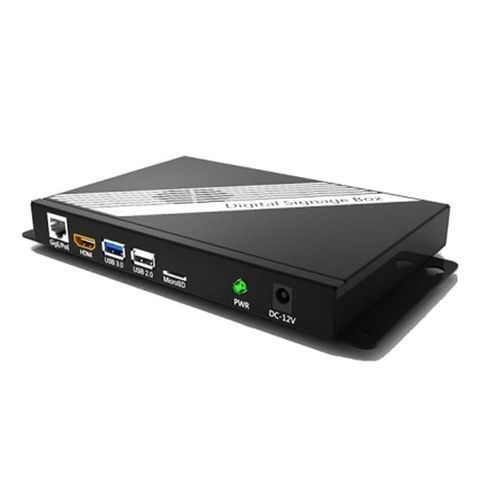

Box PC DSB710

ARMArm® Cortex®-A72 Dual-coreDDR3 SDRAM

DSB710 is designed with classical metal chassis. It is very suitable for large TV display that can attractive visitor's attention. An available free software App(e.frame-host) is designed with intuitive UI operation and provided sample templates for various application circumstance. These free offers are helpful for beginners to build up an exquisite content & rich color in easily, quickly. Based on the system have equipped GigE(LAN) and 2.4/5Ghz Wi-Fi function. The completed advertising contents can broadcast or update in a local network or from a remote Host-PC. The DSB710 also can be setup to provide an extra WiFi-HUB function for a multi-services. Specification Processor - Dual Cortex-A72 @ 2.0Ghz + Quad Cortex-A53 @ 1.5Ghz GPU - Integrated ARM Mail-T864, AFBC supported Memory - 2GB DDR3-1066 SDRAM on board (Optional 4GB) Storage - 8GB eMMC(Optional 16GB, 32GB) Micro SD Card Slot (Max. 1 TB available) 1 x USB 2.0, 1 x USB 3.0 Network - LAN, Ethernet: 1 x RJ45-10/100/1000 Mbps WiFi + Bluetooth 4.1 Updating Method - Via LAN / Wi-Fi / U-keyboard & mouse IR (Optional) - IR remote control, Stereo Jack Ø 3.5, 38KHz, NEC IR protocol PoE (Optional) - Supports Power Device(PD): follows IEEE 802.3 at (25W) Power Input - DC 12V / PoE (Optional) Power Consumption - Max 7w @ 4x video showing simultaneously Cooling System - Fanless design Product Size ( L x W x H) - 207.8 mm x 118.2 mm x 25 m
