Rotor granulator TR-1400

heavy-dutyhydraulic

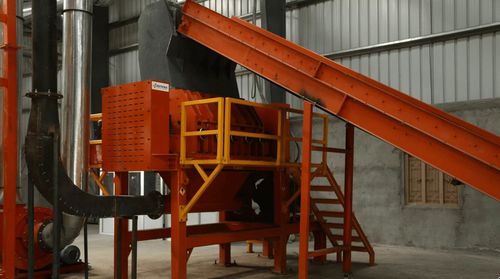

The Fornnax Granulator TR-1400 is a single-shaft heavy-duty machine designed to accept pre-shredded steel-free rubber mulch, wire cables, plastics, and many other non-ferrous materials for downsizing particles up to 4 mm. The machine is driven by a 120 HP to 150 HP motor, which provides sufficient power and torque to the rotor shaft. Low-cost blades and replaceable screens make the technology very reliable and efficient. FEATURES SECOND-TO-NONE-SERVICEABILITY The hydraulic hopper and screen opening ensure easy maintenance. ADVANCED BEARING HOUSING Advanced Bearing Housing – isolates bearings from cutting chamber contamination LOW MAINTENANCE COST Multiple time re-grind blades for low cost operations LONGEVITY Replaceable wear plates -to increase the durability of the cutting unit. PRECISION CONTROL Specific Stop Feature: Control feeding according to load percentages to maximise efficiency and protect against damage. VERSATILITY Rapid screen change system to control the output size, and wide range of input capabilities to handle various materials CUSTOMIZATION Inlet and Outlet hopper -highly customized PROTECTION AGAINST UNSUITABLE MATERIAL Highly sensitive Slip-clutch- to protect the machine against unsuitable materials.
