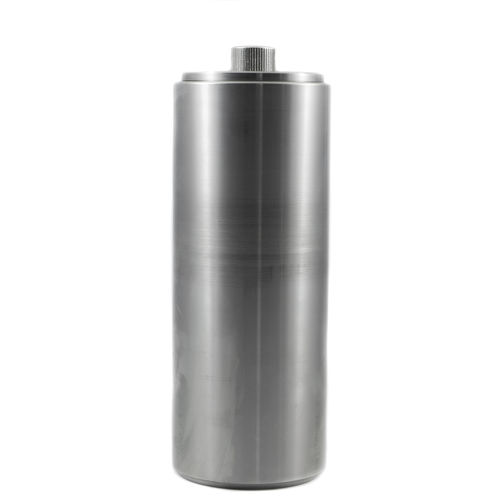

Diaphragm pulsation dampener BTHX series

bellowsstainless steel

Maximum working pressure (PS): 150 Bar Test pressure (PT): PS x 1,43 / 1,3 / 1,5 Body: in AISI 316 L stainless steel Diaphragm / Bellow: in PTFE (Teflon) Standard nitrogen valve : ⅝” UNF Installation: horizontal / vertical (nitrogen valve upward) Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature. Also available: - Outside epoxy painted as per standard FOX procedure or as project specification - Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN - Connection API spec. 6A type 6BX - Autoclave or Grayloc connection - Integral flange connection - Special connection on request - Special execution for high pressure - Exotic material execution - Diaphragm / Bellow FDA certified - Lapped / electro polished execution for pharmaceutical applications - Special volume on request - BTH, carbon steel execution - BSTX, execution with metallic bellow for application above 250°C
