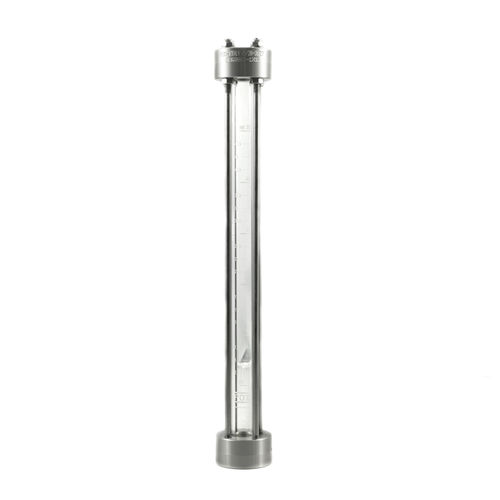

Stainless steel calibration tank CCG series

Functionality: installed on the suction side of dosing pumps are used to accurately calibrate their flow rates; they are usually sized with measurement time of 60 or 30 seconds Maximum working pressure (PS): 1 bar Closing caps std: stainless steel AISI316L Gaskets: PTFE Tube: Borosilicate glass, serigraphy in ml Installation: vertical Warranty: see dedicated page Spare parts: see dedicated page Also available: - Serigraphy on external steel plate - Various unit of measurement (gpm, l, m3) - Outside epoxy painted as per standard FOX procedure or as project specification - Connection flanged ANSIB16.5 or UNI/DIN - Special connections on request - High pressure execution (10 bar) - Exotic materials (see table below) - Special volume (till 50 liters) - External stainless steel safety protection
