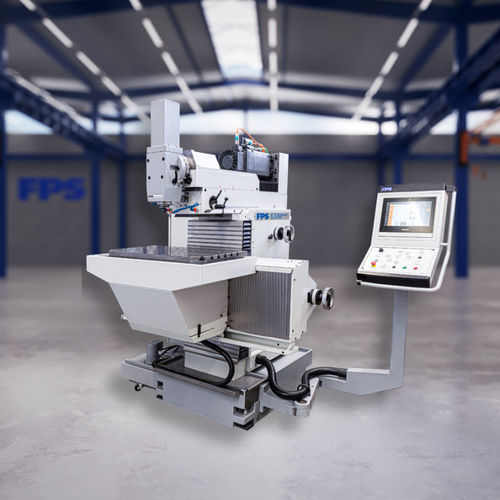

3-axis milling machine FPS 630M-digital

universalwith moving tableindustrial

The perfect entry into modern manufacturing. Solid, durable and easy to maintain – the ideal machine for use in apprenticeship and manufacturing. With variable operating speeds up to 5000 rpm – ideal for higher feed rates and higher cutting speeds. User-friendly due to an intuitive, ergonomic design. Compact machine dimensions for use in limited space. Swiveling control panel. HEIDENHAIN Positip 8016 Touch – Active – straight cut control. Cutting head can also be moved further along the Y-axis - 150 mm W x D x H space - 2600 x 2100 x 2050 mm Angle table Table/clamping surface - 800 x 470 mm T-grooves: Number / width / distance - 7 / 14H7 / 63 mm Permitted load - 350 kg Operating spindle Vertical and horizontal horizontal (optional) Vertically extending as drill spindle, with clamp/stroke - approx. 80 mm horzontally extending as drill spindle, (optional) with clamp/stroke - approx. 100 mm Manually rotating cutting head - +/- 90° Tool holder with hydraulic tool clamping - ISO 40 DIN 69871 Tightening system Hydraulic tightening system - DIN 69872 (standard) DIN 2080 (optional) Main drive, three-phase-current brake motor Torque - 243 Nm (stepless adjustable) Feed drive, digital drive Feed rate, continuously variable - 0 to 2000 mm/min Rapid feed - 5 m/min Control wheel manual rotation - 2.5 mm Connection Mains connection - 3 x 400 VAC 50 Hz 25 A Max. prelim. fuse rating - 35 A Mains configuration - TN-S connection type: Fixed connection Control cabinet electronics CE-compliant in line with current regulations of professional associations - BGVA 3 / DIN EN 60204-1 Weight Total machine weight incl. machining table, cutting head, cabin and control cabinet - approx. 2300 kg
